Philips Advance HID ballasts are available to operate the wide variety of metal halide, high pressure sodium and low pressure sodium lamps available in today marketplace. Like fluorescent, HID lamps are gas discharge lamps. Light is produced by an arc discharge between two electrodes located at opposite ends of an arc tube within the lamp outer glass envelope. The ballast is the lamp power supply; its purpose is to provide proper starting and operating voltage and current to initiate and sustain this arc. Philips furnishes 120/208/240/277 Philips Advance Quadri-Volt core and coil ballasts to allow the stocking distributor to conveniently meet the replacement and retrofit needs of customers. In addition, we now offer 120/208/240/277/480 VAC 5-TAP core and coil ballasts for the most popular applications. 5-TAP ballasts add the 480 VAC input lead to the Quadri-Volt designs. A Quadri-Volt or 5-TAP core and coil, along with the appropriate capacitor, igniter (where required), mounting bracket and hardware and installation instructions are packed in a space saving shipping carton. These "kits" eliminate the need for distributors or end users to stock loose components of single voltage ballasts for 120, 208, 240, 277 and even some 480 VAC applications, though single voltage kits for 480 VAC applications will also be available.

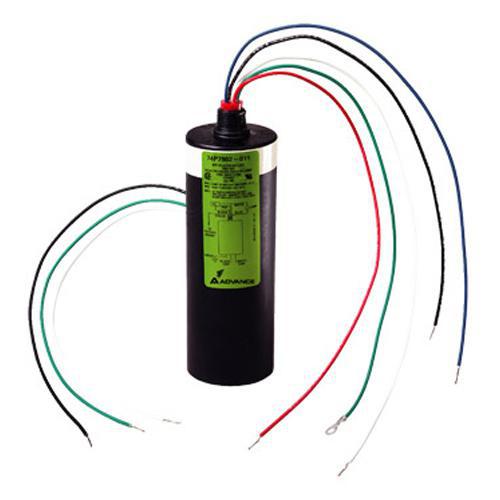

Advance Postline High Pressure Sodium Ballast, HID Magnetic, Series: 74P, High Pressure Sodium Lamp, 100 W Lamp, 100 W Wattage, 208 VAC, 0.72 A, 60 Hz Frequency, Pulse Start, -40 deg F Minimum Starting, Power Factor: 1, 1 Lamps, 74P8013 Lamp Base, Ballast Factor: 1, ANSI S54 Ballast Grade, Fixture Mounting, Metal, 2.55 in Dia x 21 in L Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Philips_Advance_74P8013011P_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Philips_Advance_74P8013011P_Specification_Sheet.pdf

• Lantern type, post top fixtures mounted on slender poles often require ballasts which fit in the poles
• Postline ballasts include a special, elongated core and coil ballast encased and potted in a high temperature resin (Class H, 180 deg C maximum.) in cylindrical housings of a diameter to accommodate being placed within a 3 or 4 in Dia pole
• 0.72 A input current (nominal)
• Thermally protected
• UL insulation class H of 180 deg C
• 12 in L stranded wire
