Designed for residential and light commercial applications where duty is not severe. listed to UL standard 98 enclosed and dead front switches. suitable for use as service equipment when installed in accordance with the national electrical code certified to CSA standard 22.2 no 4-04 enclosed and dead front switches. meets or exceeds NEMA KS1 standard for enclosed switches - type GD. fusible and non-fusible switches available (consult BuyLog for interrupt ratings). quick-make, quick-break mechanism (30 to 200 A). 60/75 deg C conductor rating.

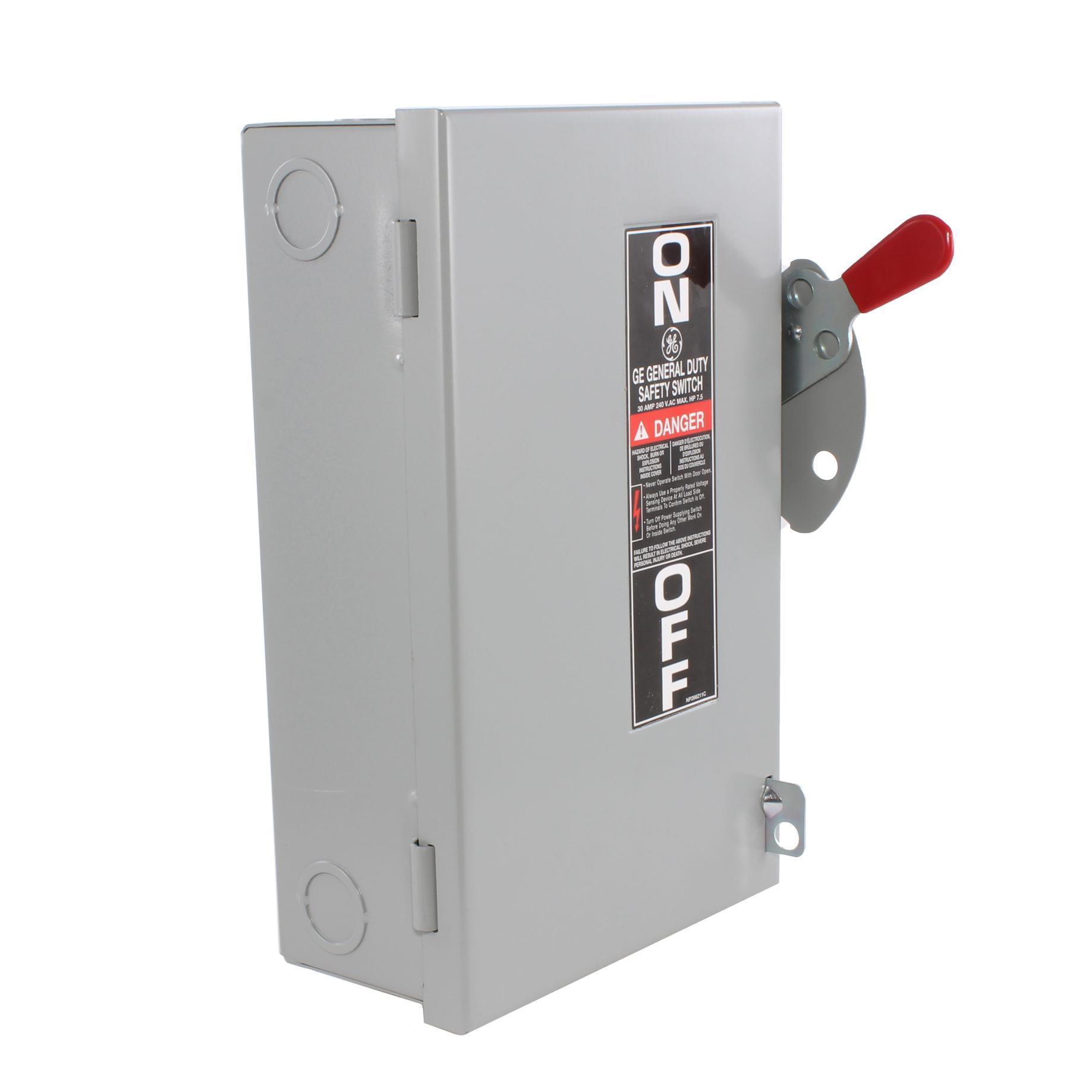

GE Spec-Setter™ Safety Switch, General Duty Non-Fusible, Series: TGN, 240 VAC, 30 A, 3 hp Standard Fuse/7-1/2 hp Time Delay, 1/3 ph, 50/60 Hz Frequency, 3 Pole, 3 Wires, 100 kA Short Circuit, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, 60/75 deg C, 10.28 in H x 6.4 in W x 3.3 in D Dimensions, Steel

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TGN3321_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TGN3321_Specification_Sheet.pdf

• Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive on/off indication
• Self-leveling, 3-point mounting system
• Integral cover interlock

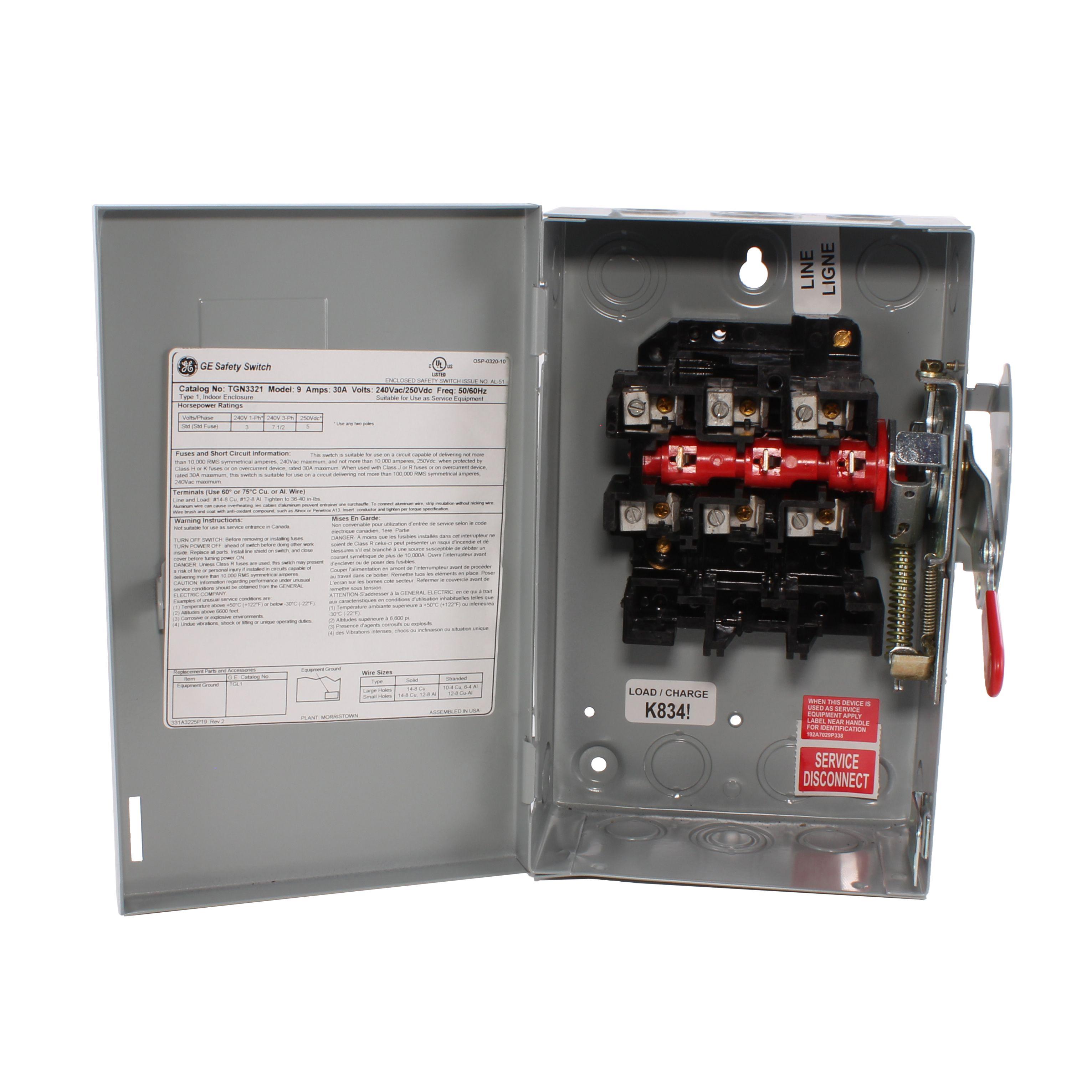

• Visible confirmation of plated blade contact positions
• Spring reinforced fuse clips assure reliable contact for cool operation
• Suitable for class H, K, J or R fuses, where applicable
• UL listed short circuit rating is 10000 rms symmetrical amps standard
• With class R fuses and fuse kits installed, 30 to 200 A switches have UL listed short circuit rating of 100000 rms symmetrical A
• UL listed as service entrance equipment when installed in accordance with the national electric code
