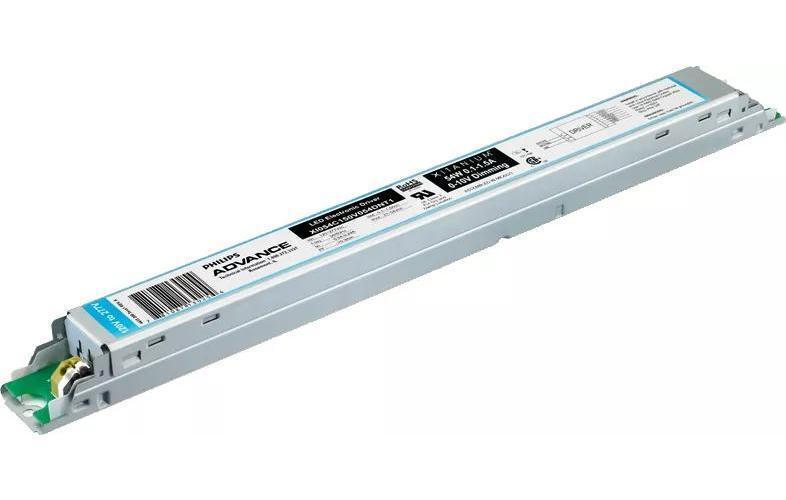

Advance Xitanium LED Driver, 8-Wire Dimmable Linear, 120 to 277 VAC Input, 27 to 54 VDC Output, 61 W Power, 0.7 to 1.5 A, Power Factor: >0.95, 14.17 in Length, 1.18 in Width, 1 in Height, 85 deg C

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Advance_XI054C150V054DNT1M_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Advance_XI054C150V054DNT1M_Specification_Sheet.pdf

• Dimmable drivers include 0 to 10 VDC, step dim or leading edge dimming to integrate into common dimming systems used in commercial applications
• Adjustable output current
• Wide operating windows
• 1% 0 to 10 VDC dimming on select models
• Class P on select models
• High efficiency for maximum payback
• High reliability for low maintece costs
• 0 to 10 VDC dimming, AOC (Rset2), RNTC
• 50/60 Hz frequency
• Input and output are WAGO 250 connectors
• Use 18 AWG solid copper wire
• 3/8 in strip wire
• 25000 hr life
• -20 to 50 deg C ambient temperature range
• <20% total harmonic distortion
• 26/86 A, 65/83 A inrush current
• T-360 housing
• Dimming enables maximum energy savings and can help to facilitate worker comfort
