Ferrules are electrical connectors used to terminate stranded wires, creating a quality, reliable connection by ensuring each wire strand conducts current when properly crimped. Especially useful when multiple reconnections could be necessary within terminal blocks or other similar devices. No breakage of wire strands when wire is bent, under stress or in a vibration environment. Twin ferrule designs allow two individual stranded conductors to be connected to the same termination, most beneficial in jumpering or other similar applications. Both styles (single and twin) offer the same features and benefits. The YF-TOOL series has been designed to crimp both the bare (Type YF-UI) and insulated (Type YF-I) ferrules.

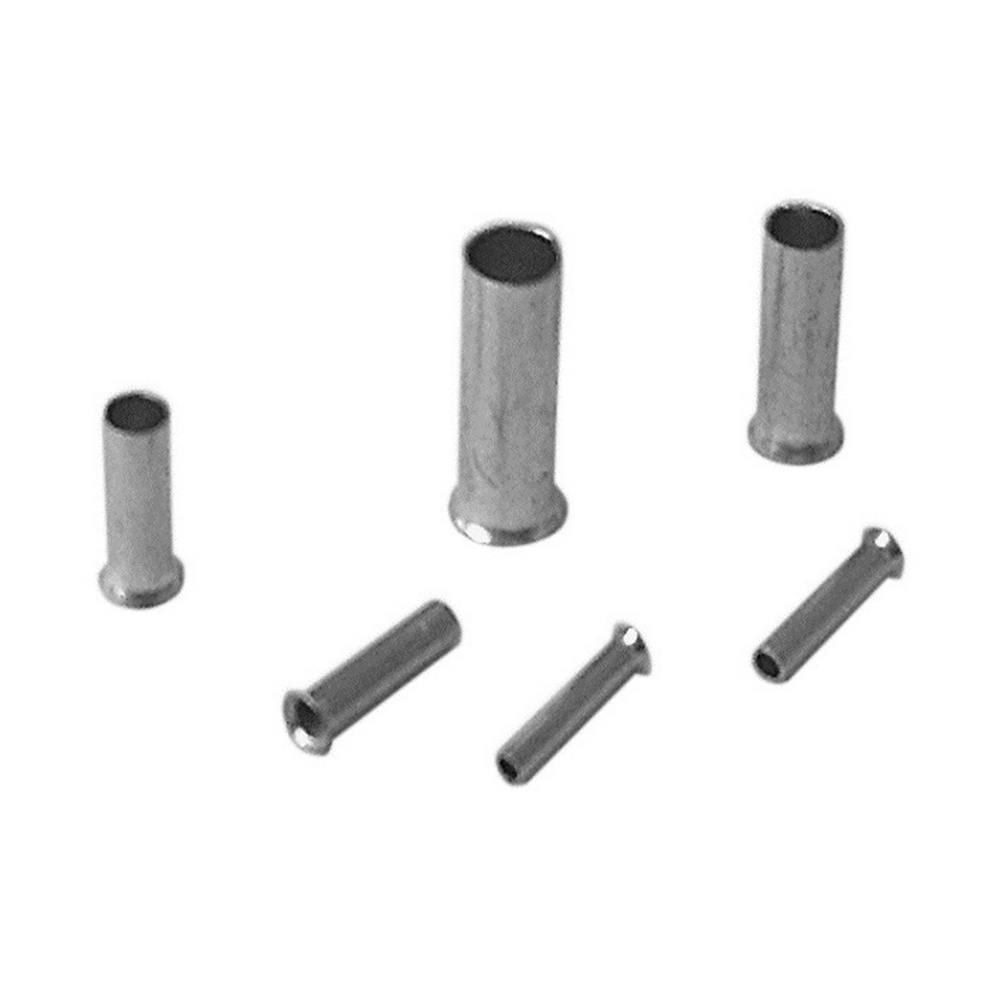

BURNDY® Bare Ferrule, Type YF-UI Uninsulated, Series: YF Series, Solid/Stranded Copper Conductor, 12 AWG Conductor, 0.709 in Length, Seamless Barrel, 0.11 in ID x 0.126 in OD Barrel, 0.154 in Dia Funnel, Electrolytic Copper, Tin Plated

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YF0225UI_Full_Engineering_Drawing.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YF0225UI_Full_Engineering_Drawing.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1516382800772.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1516382800772.pdf

• Wire ferrules are also known as cord end terminals or bootlace ferrules
• These are electrical connectors used to terminate stranded wires
• Uninsulated ferrules are designed to form neat end terminations to multi-strand cables or wires
• Smooth funnel entry assists in wire insertion
• Specifically designed to aid in termination of extra flexible fine stranded conductor
• Provides enhanced flexibility relating to wire termination and management
• A positive contact surface helps ensure system integrity
• For YF3206TOOL, YF2610TOOL and YF2210TOOL tools
