The Patented Lumark Crosstour™ LED wall pack Series of luminaries provides an architectural style with super bright, energy efficient LEDs. The low profile, rugged die cast aluminum construction, universal back box, stainless steel hardware along with a sealed and gasketed optical compartment make the Crosstour™ impervious to contaminants. The Crosstour™ wall luminaire is ideal for wall surface, inverted mount for facade/canopy illumination post/bollard and low level pathway illumination including stairs. Typical applications include building entrances, multi-use facilities, apartment buildings, institutions, schools, stairways and loading docks.

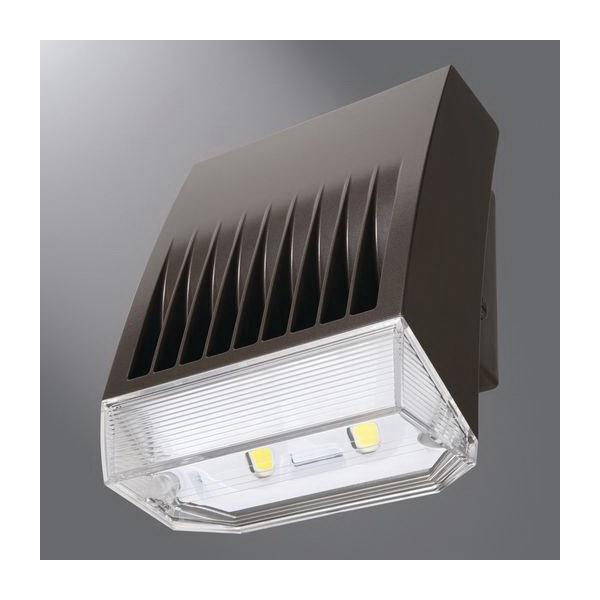

Lumark, XTOR8BRL, Outdoor Wallpack, Series: XTOR, 120 to 277 VAC, 81 W Fixture, 0.29 A, 1 Lamps, 72000 hr Average Life, Bright White Light, 5000 K Color Temperature, 70 CRI, Integral LED Electronic Ballast, Refractive Lens, 8635 Lumens, IP66 Enclosure, Surface Mounting, Die Cast Aluminum Housing Material, Carbon Bronze Housing Finish, 6-1/2 in L x 9-1/4 in W x 12-1/4 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lumark_XTOR12B347V_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lumark_XTOR12B347V_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_597af34e264781443f2d83333444fb5447a3d6e8a56f24d15b3eb3160232e9e0.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_597af34e264781443f2d83333444fb5447a3d6e8a56f24d15b3eb3160232e9e0.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d19d01f5be8e9f8fa12385f4515dd8902cafaa8a9b14b06b68208bfdbe9d1fcc.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d19d01f5be8e9f8fa12385f4515dd8902cafaa8a9b14b06b68208bfdbe9d1fcc.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf

• The wallpack luminaires are environmentally preferable LED alternatives to traditional HID luminaires, offering up to 77% in energy savings
• Ideal in place of traditional luminaires or as new installations, the wallpack series is offered in seven wattages/lumen packages
• The housing is a perfect fit for replacing existing traditional luminaires and minimizes light pollution through its cut-off design
• Sylvania luminaires assure optimum light engine performance for extended service and rated life
• Energy-saving replacement up to 250 W HID
• Patented heavy duty construction, maximum LED performance
• Die cast aluminum, low profile design with hinged removable door
• Sealed LED optical chamber with 4000 K and 5000 K (CCT)
• Emergency egress battery pack
• Wall, inverted or pole mount
• 0.29 A at 277 V amperage rating
