EATON's Crouse-Hinds series is designed to the highest standard of safety and productivity to keep people safe and plants running reliably. the more demanding the environment, the likelier you are to find EATON products at the center of operations.

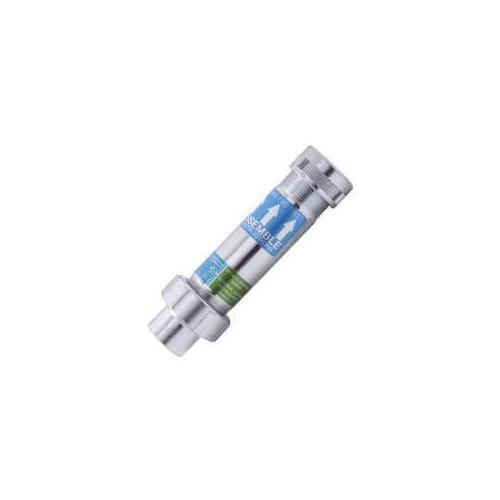

Crouse-Hinds Expansion Coupling, Series: XJG, 1-1/4 in Size, For Use With: Rigid Metal/IMC Conduit, Steel, Electro-Galvanized, 3.19 in Dia x 7.56 in L Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_260a0927a993884d121a857db5e6391655af37c0fe6b1706b7b75b35fd0848dc.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_260a0927a993884d121a857db5e6391655af37c0fe6b1706b7b75b35fd0848dc.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0b1cdf104bf78c18ac4ed1aa3a2466776907e260c497f22019491d3c91f2f8d4.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0b1cdf104bf78c18ac4ed1aa3a2466776907e260c497f22019491d3c91f2f8d4.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7008287bdd9ca7b120b82cfb4abc19d9f914fac151099020494f3eea1fec1b6d.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7008287bdd9ca7b120b82cfb4abc19d9f914fac151099020494f3eea1fec1b6d.pdf

• Weatherproof and approved for use indoors or outdoors without an external bonding jumper
• Flexible, watertight connections that protect rigid and IMC conduit wiring systems from damage caused by movement
• Internal bonding springs and metallic bushings create high integrity internal ground connection and eliminate need for external bonding jumpers and clamps
• Patented design
• 4 in maximum conduit movement
• Feraloy® iron alloy electro-galvanized and aluminum paint reducer, gland nut and bushing
• PTFE composite packing, steel electro-galvanized washer, vellum gasket
• Phosphor bronze electrogalvanized ground springs, braided tinned copper ground strap, malleable iron electrogalvanized U-bolts
• ON long conduit runs to prevent conduit from buckling and ensuing circuit failures
• In conduit runs to prevent damage to conduit supports such as in a building or ON a bridge
• To couple together two (2) sections of conduit subject to longitudinal movement
• In conduit runs that cross structural joints
