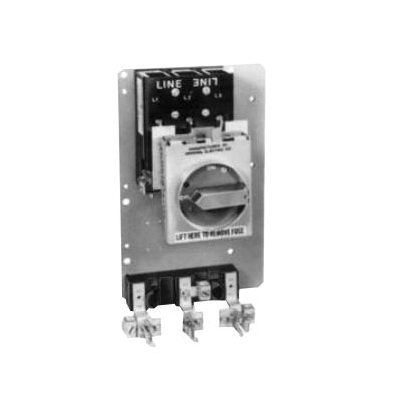

These 30 to 600 A disconnect switches are complete with Class H fuse clips except where noted, line/load lugs and handle operators, all factory assembled and are mounted on a heavy gauge steel backplate. They are UL Recognized Components, File No. E36152 and UL Recognized to Canadian safety requirements under the Component recognition Program of Underwriters Laboratories Inc. The 30 to 200 A fusible switches are UL Recognized for use on circuits capable of delivering not more than 200 kA RMS symmetrical amperes at 240 or 600 VAC when fused with Class R rated size fuses. Class H fuse clips are standard. Suitable for NEMA 1 and NEMA 12 enclosures.

GE Spec-Setter™ Heavy Duty Safety Switch, Fusible, Series: QMR, 240 to 600 VAC, 250 VDC, 100 A, 10 hp, 30 hp, 50 hp, 3 ph, >200 kA Short Circuit Current Rating, Rotary Handle Actuator, Class R Insulation, Open, Line/Load Lug Terminal
