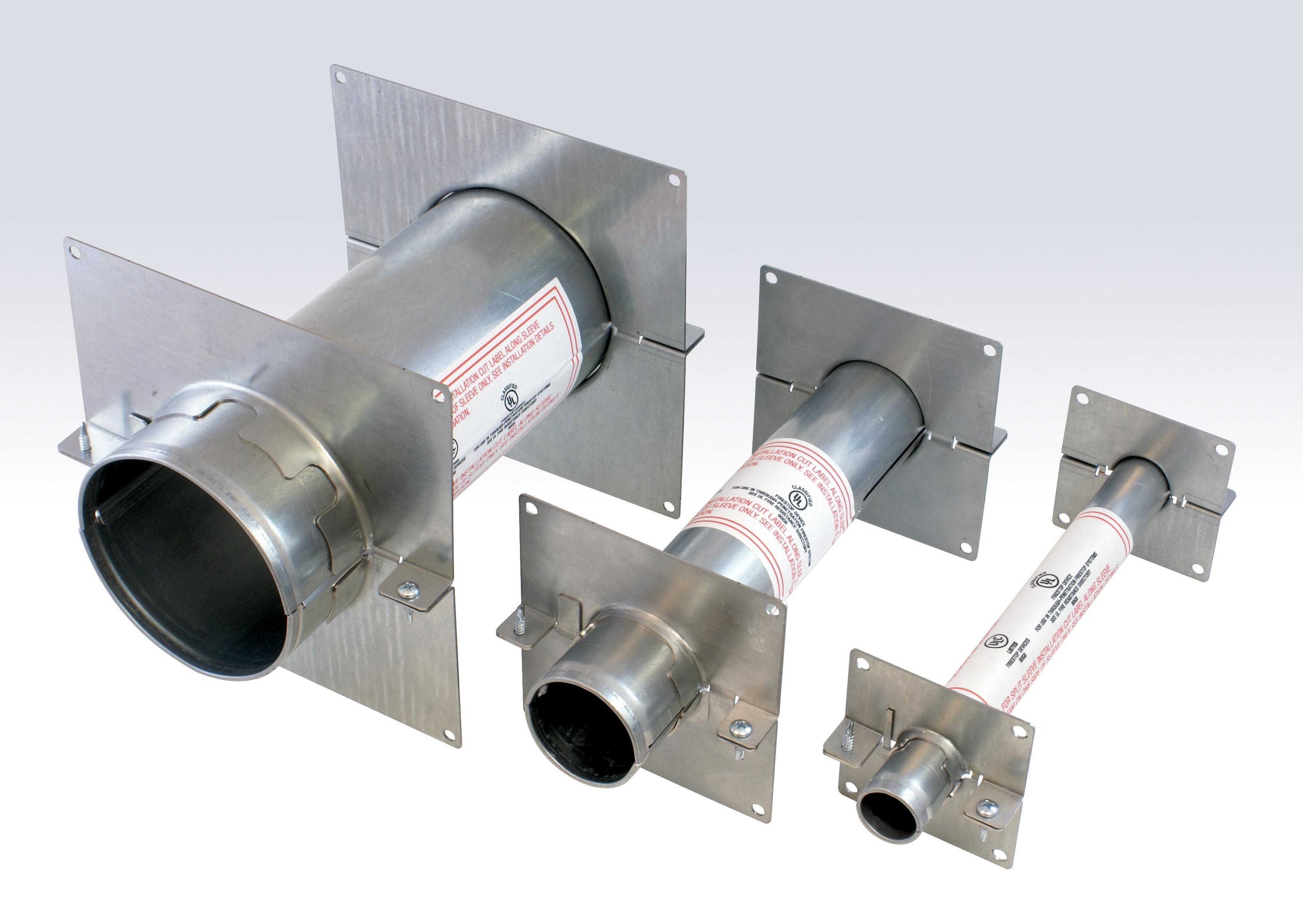

3M™ Fire Barrier Putty Sleeve Kits are designed to help prevent the passage of fire and smoke in new or existing cable penetrations through walls or floors. These kits are tested up to 4 hours for fire-rated through penetration systems (in accordance with ASTM E814). No gasket is required with this product and it allows for both new and retrofit data and telecom cable firestop installations.

3M™, 7000145570, Fire Barrier Sleeve Kit, For Use With: Fire Barrier Device, Specifications Met: UL/ULC Listed, Red, 4 in Dia x 12 in L Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e0334d0bdc3ad02f574e8f5838dd8bc34d7bc4822e64e057123c3e06c8972c3a.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e0334d0bdc3ad02f574e8f5838dd8bc34d7bc4822e64e057123c3e06c8972c3a.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_997f1bb5e1e42af43762fac6863c1cb818c75672b5cce8051e3c12730b0e9066.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_997f1bb5e1e42af43762fac6863c1cb818c75672b5cce8051e3c12730b0e9066.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a4ebf57863119209fb1b6d81499d4aa27f50c9b30000020831cd023f62ca7f21.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a4ebf57863119209fb1b6d81499d4aa27f50c9b30000020831cd023f62ca7f21.pdf

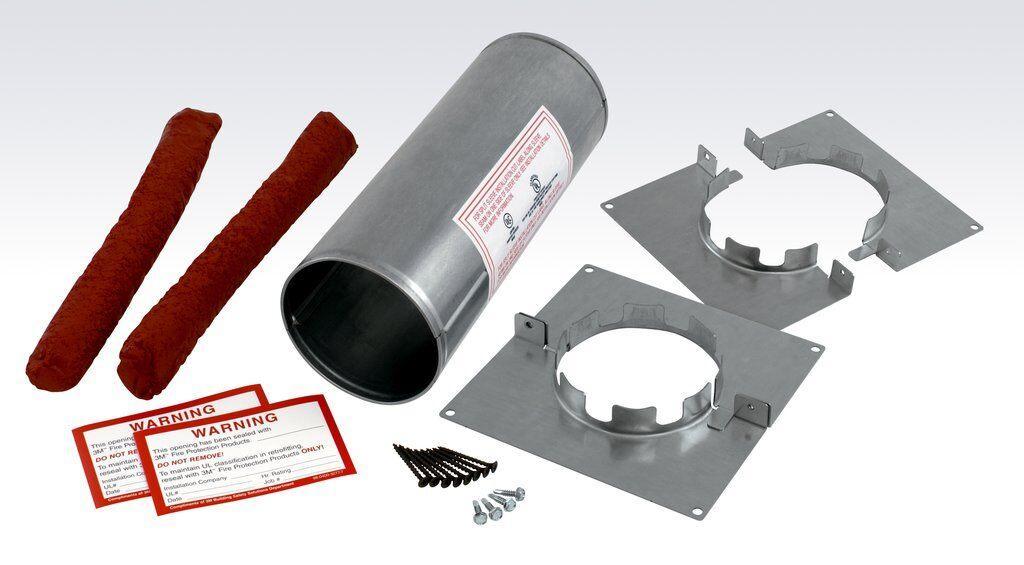

• Ready-to-install kit with all items needed for a complete cable or blank firestop installation
• Tested up to 4 hr for fire-rated through-penetration systems in accordance with astm e 814 (ul 1479)
• Blank sleeve (0% cable fill) accommodates future cable installation

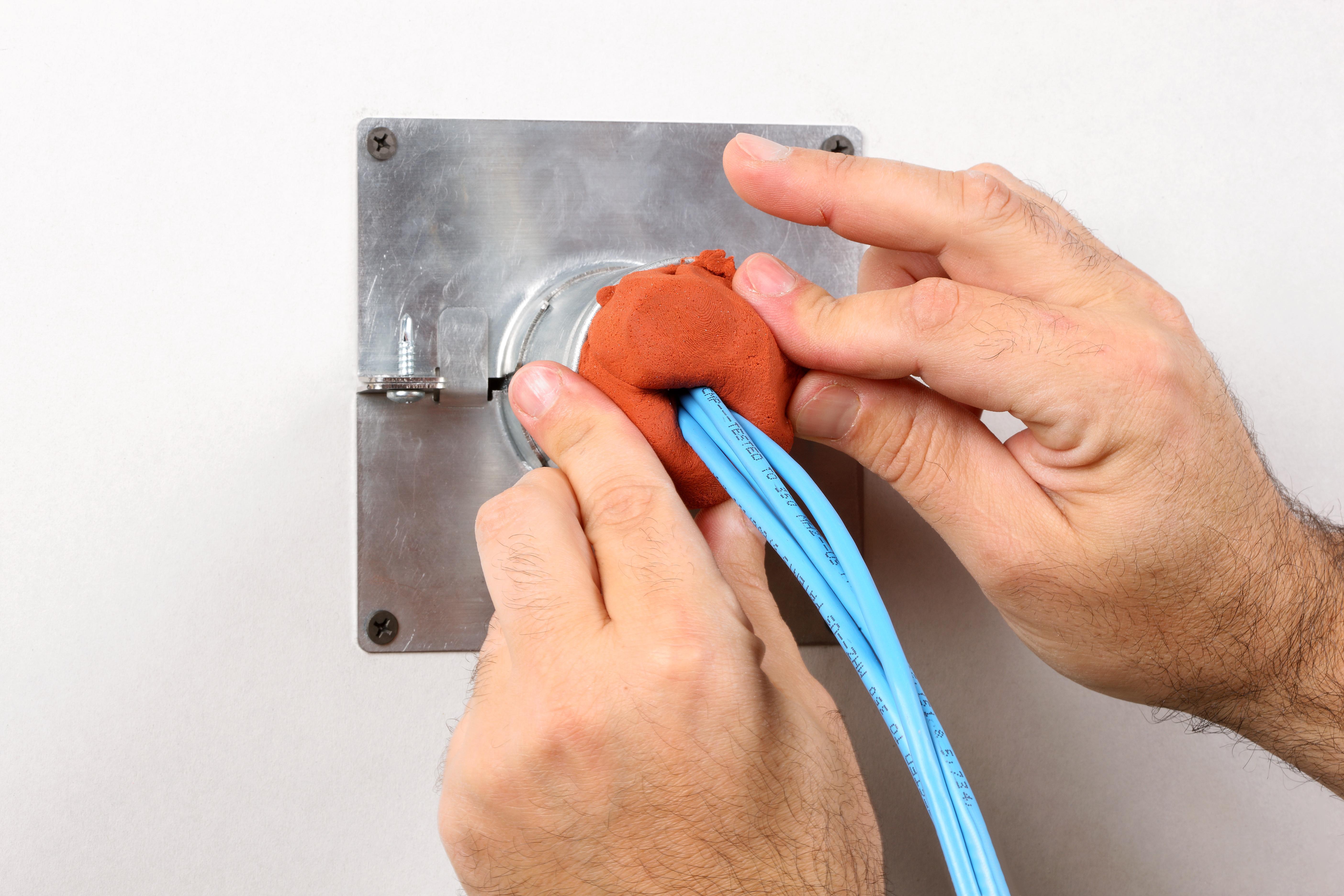

• Two piece split/hinged design for easy retrofit installation on existing cables
• Suitable for installation in gypsum wallboard and concrete walls or floors
• 18 ga galvanized steel sleeve and flange plate material
• Volume expansion at 662 deg f
• Begins at 400 deg f
• No gasket required to ease installation process
• Rolled-out lip on sleeve allows for smooth cable entry
• Brackets and sleeve work in tandem to help prevent slipping during installation
