60/75 deg C conductor rating suitable for use as service entrance equipment when installed in accordance with the national electrical code 22 kAIC rms symmetrical, except where noted. 6 to 42-circuit devices UL listed for bottom mounted lugs by installing complete unit (box, interior and front) upside down. No lock provision available. Use compatible load center with the suffix C24 with a TDL106 for locking provision.

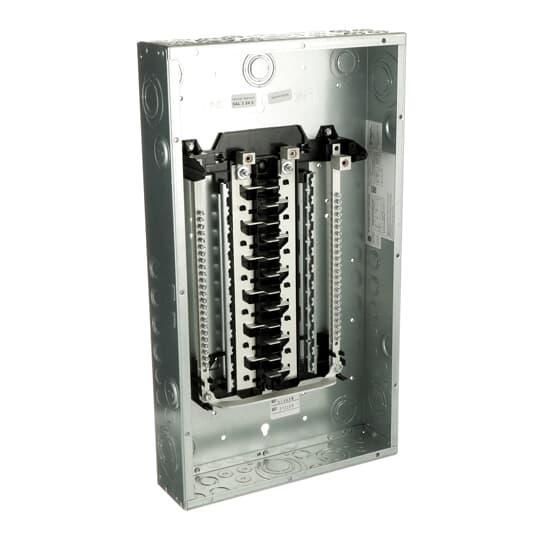

GE PowerMark Gold™ Convertible Load Center, 1-Phase Combination Standard, Series: TLM, 120/240 VAC, 125 A, 65 kA Interrupt, 24 Circuits, THQL Breaker, Plug-In Breaker Mounting, 3-Wire Wiring Configuration, 125 kA Bus, 24 Spaces, 6 to 2/0 AWG Wire, Flush Mounting, NEMA 1 Enclosure, 24-11/16 in H x 14 in W x 3-3/4 in D Enclosure Box, 26-3/4 in L x 16 in W x 5-1/2 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TLM2412CCU_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TLM2412CCU_Specification_Sheet.pdf

• Suitable for use as service entrance equipment when installed in accordance with the national electrical Code®
• 6 to 42 circuit devices UL listed for bottom mounted lug by installing complete unit box, interior and front upside down
• Main lugs convertible to main breaker
• For main breaker, order TQMH000, also order 2-pole THQL, THHQL or TXQL circuit breaker
• Box no 7
• (42, 4, 24, 16, 20, 32, 40) 1/2 in spaces
