Type IP transformers are core and coil units designed for machine tool, industrial control, panelboard and general purpose applications. These designs are now welded core and encapsulated to provide the highest quality electrical performance. The transformer coil is completely surrounded by epoxy, making the unit impervious to external elements. The lamination core is welded to provide superior quiet performance. Several types of terminations are available to simplify installation. These include primary and secondary leads out, integral fuse and spade-type terminal and our standard which is a touch proof terminal block. Consult your local GE sales office for complete technical applications data.

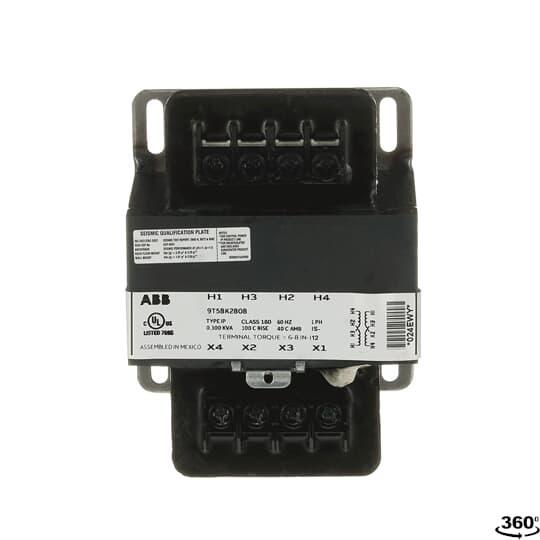

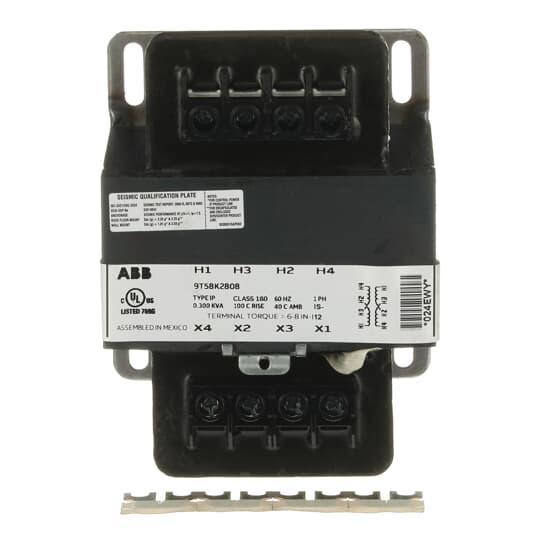

GE Power Control Transformer, Fully Encapsulated, Series: 9T58K, 240/480 VAC Primary, 120/240 VAC Secondary, 0.3 kVA, 60 Hz, 1 ph, Pressure Plate, 8200 Frame, Panel Mount, IS-12, NEMA 1, 40 deg C, Plastic Housing, 3.81 in W x 3.28 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_9T58K2808_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_9T58K2808_Specification_Sheet.pdf

• Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
• Fully encapsulated coil is impervious to moisture
• Terminal board is anchored in the epoxy for greater reliability
• Wide variety of fusing options
• Rugged, high impact plastic terminal board
• Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
• Flexible design allows input or output voltage to match any application
• Copper windings
• Pressure plate terminals ensure secure connections
• 100 deg C temperature rise
• K1-factor rated transformer
• 180 deg C insulation temperature, terminal board type
• Type IP and open core and coil power control transformer
• Transformers are built to standard sound level
• 8200 frame
• IS-12 insulation system
