BURNDY's compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost. Copper compression connectors are manufactured from high-conductivity electrolytic copper. The connectors are normally tinplated, lead-plated, or plated with proprietary BURNDY® brite finish to provide durable long-lasting corrosion resistance. The connector design has been matched to the cable size to provide the necessary physical strength requirements for reliable electrical performance.

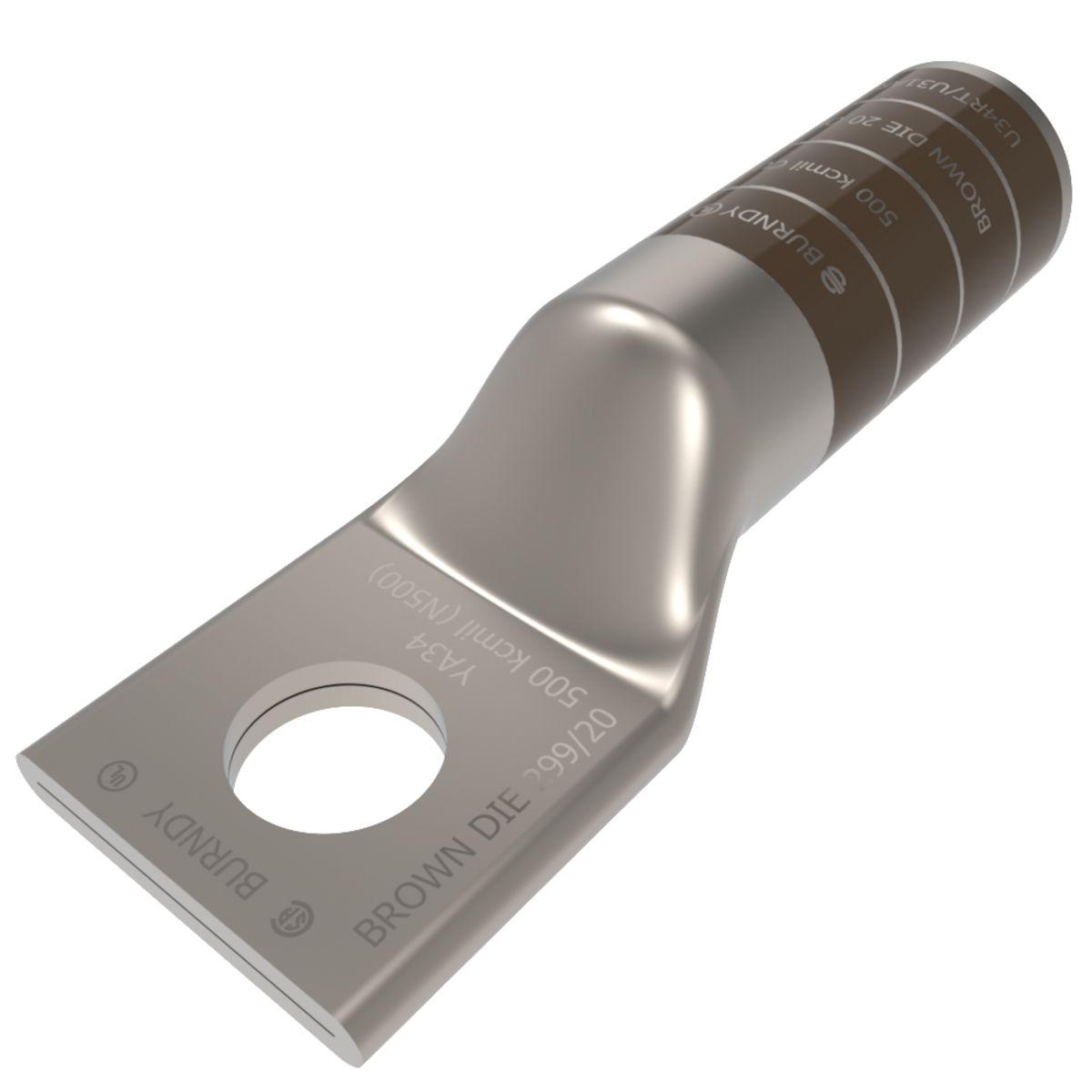

BURNDY® HYLUG™ Lug Compression Connector, 1-Hole Non-Insulated, Series: YA Series, Code/Stranded Copper Conductor, 500 kcmil Conductor, Die Code: 20, 600 to 35000 V, 5/8 in Stud, Standard/Straight Tongue, 1.55 in W x 0.23 in THK Tongue, 4.39 in Overall Length, Chamfered/Long/Seamless Barrel, 1.06 in OD x 2.25 in L Barrel, Specifications: 2-5/16 in L Strip, 0.66 in Hole Spacing, 0.67 in Clearance, Electro-Tin Plated Finish, 90 deg C, 0.69 in Mounting Hole, Electrolytic Copper, Brown

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YDS2RLS20_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YDS2RLS20_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA28_Installation_Manual_CA.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA28_Installation_Manual_CA.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA34_Line_Drawing_CA.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA34_Line_Drawing_CA.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA34_Specification_Sheet_CA.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA34_Specification_Sheet_CA.pdf
• VIDEO LINK https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6319929968112

• Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
• Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
• Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
• Connectors are clearly marked with stamping and barrel color
