BURNDY® YA6C

Share Print

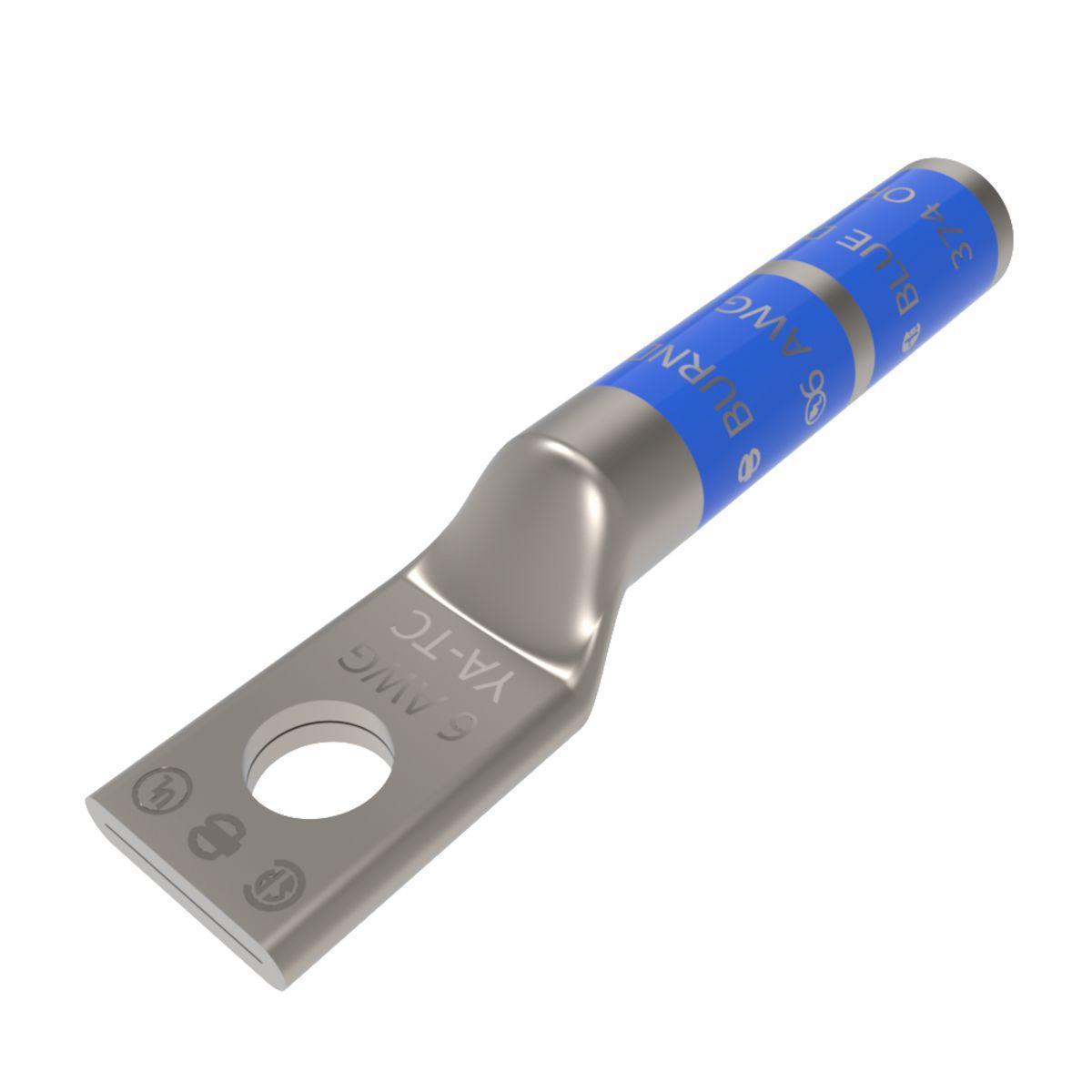

BURNDY® HYLUG™ YA6C 1-Hole Compression Lug, 6 AWG Stranded Copper Conductor, Die Code: 7, 1/4 in Stud, Tin Plated Copper

  • MPN: YA6C

  • IESPN: 165017

  • UPC: 781810501757

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
BURNDY® YA6C

BURNDY® HYLUG™ Compression Lug, 1-Hole, Stranded Copper Conductor, 6 AWG Conductor, Die Code: 7, 600 to 35000 VAC, 1/4 in Stud, Straight Tongue, 0.41 in W x 0.09 in THK Tongue, 1.81 in Overall Length, Chamfered/Long Barrel, 1.12 in L Barrel, 1-3/16 in L Wire Strip, 90 deg C, Tin Plated Copper, Blue

Type      1-Hole
Conductor Type      Stranded Copper
Conductor Size      6 AWG
Die Code      7
Voltage Rating      600 to 35000 VAC
Stud Size      1/4 in
Tongue Type      Straight
Tongue Size      0.41 in W x 0.09 in THK
Overall Length      1.81 in
Barrel Type      Chamfered/Long
Barrel Size      1.12 in L
Specifications      1-3/16 in L Wire Strip
Temperature Rating      90 deg C
Material      Tin Plated Copper
Color      Blue
  • Without inspection window
