Type IP transformers are core and coil units designed for machine tool, industrial control, panelboard and general purpose applications. These designs are now welded core and encapsulated to provide the highest quality electrical performance. The transformer coil is completely surrounded by epoxy, making the unit impervious to external elements. The lamination core is welded to provide superior quiet performance.

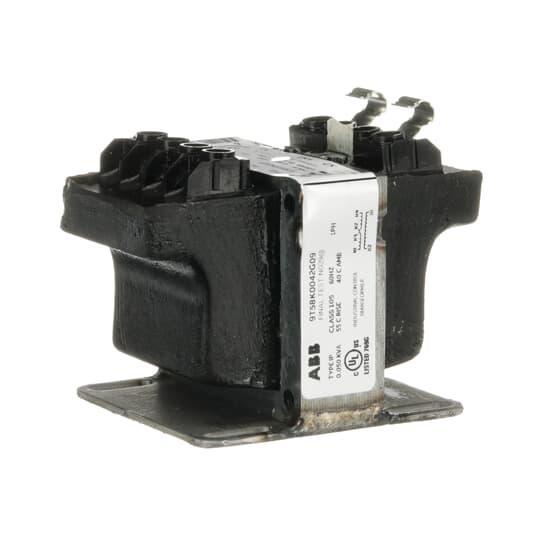

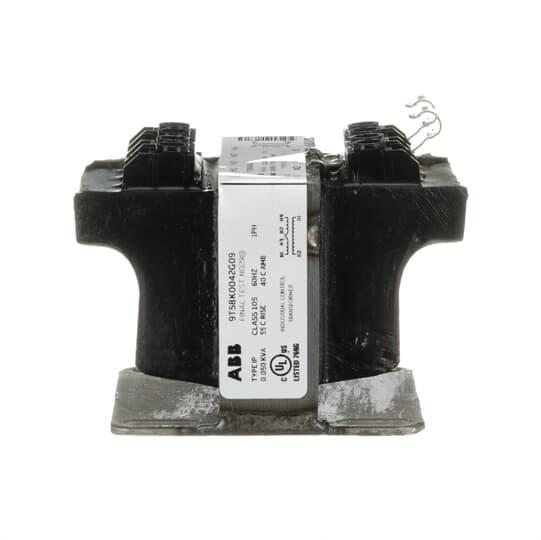

GE Power Transformer, Core/Coil Dry Encapsulated, Series: 9T58K, 240/480 VAC Primary, 110/115/120 VAC Secondary, 0.05 kVA, 60 Hz, 1 ph, 6100 Frame, Class A, Open, 40 deg C, 3.1 in W x 4 in D x 2.7 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_9T58K0042G09_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_9T58K0042G09_Specification_Sheet.pdf

• Fully encapsulated coil is impervious to moisture
• Pressure plate terminals ensure secure connections
• Wide variety of fusing options
• Rugged, high impact plastic terminal board
• Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
• Copper windings
• Flexible design allows input or output voltage to match any application
• Copper coil
• 55 deg C temperature rise
• 105 deg C temperature class
• 220 x 440, 230 x 460, 240 x 480 VAC primary volt
• Core and coil SM power transformer
