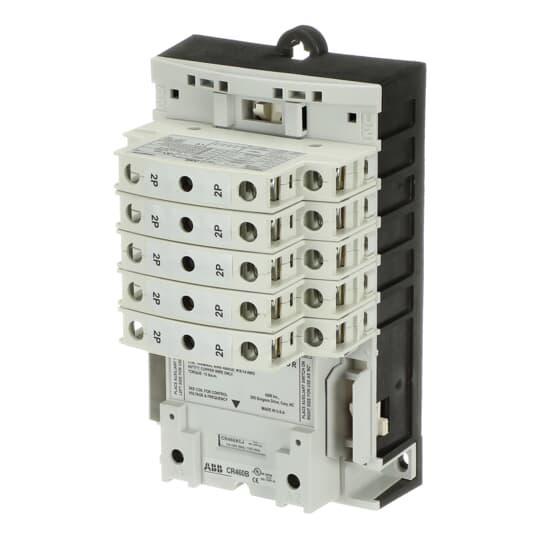

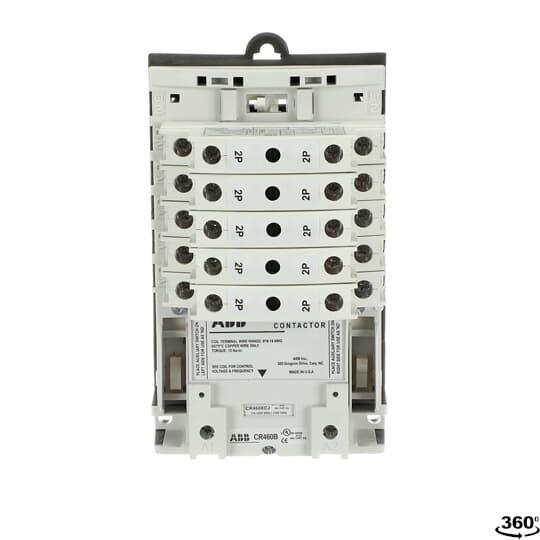

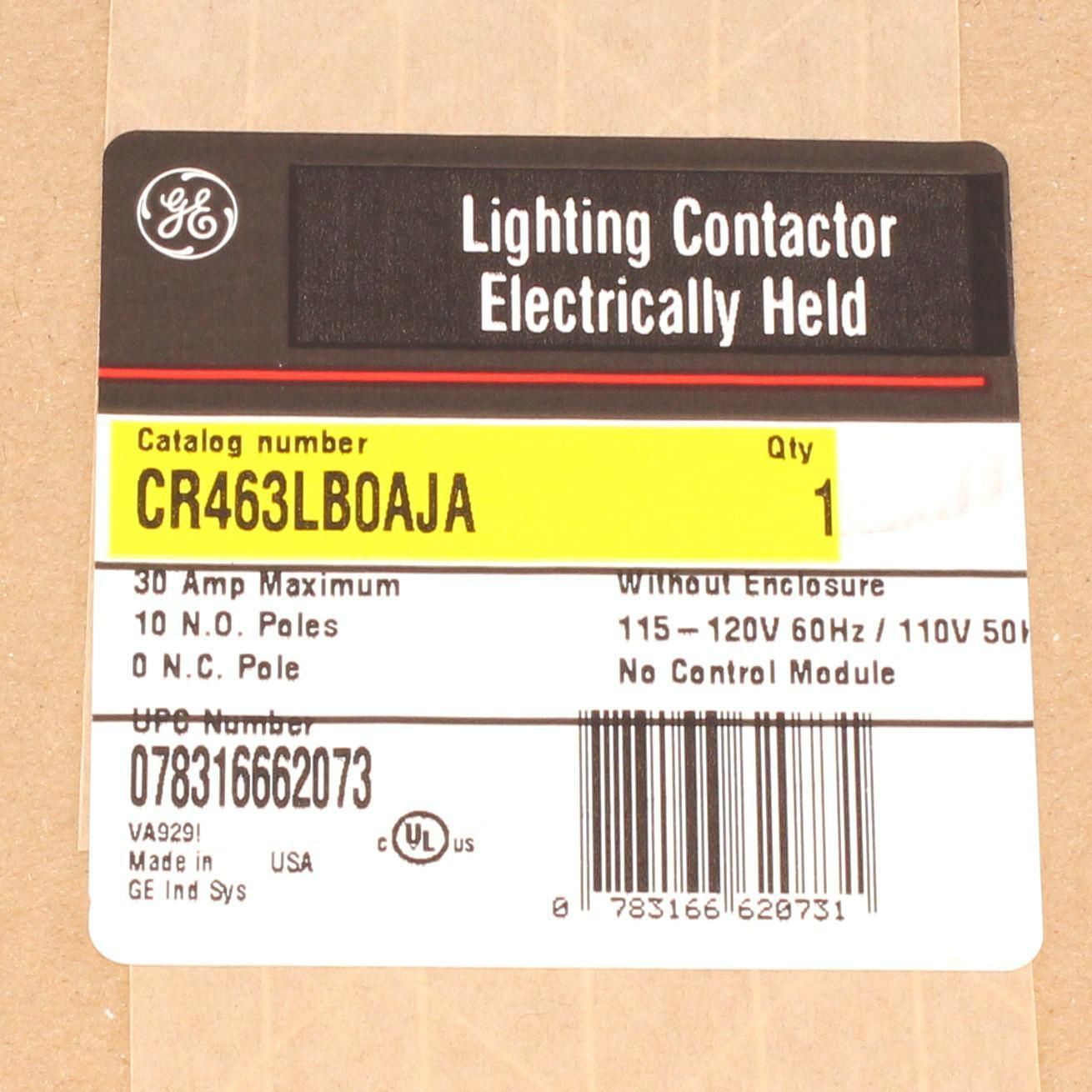

GE Industrial Solution Lighting Contactor, Electrically Mechanically Held, Series: CR463L, 110/120 VAC Coil, 30 A Maximum Load Current, 10 Pole, 50/60 Hz, Auxiliary Contact, 10NO, 30 A Contact

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_CR463LB0AJA_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_CR463LB0AJA_Specification_Sheet.pdf

• Poles may be reconfigured by the user into alternative combinations of NO and NC contacts
• 3-wires control is typically used when control is desired from multiple locations
• Contactor is operated from a momentary pilot device and requires an auxiliary contact to be used as a holding Interlock
• 2-wires control is used for single location control with power continuously supplied to the coil for contactor operation
• Open enclosure type
• Contact position indication when button protrudes, contact is closed
• Power poles are available as single or double-poles, creating 74 different circuit combinations
• Convenient side access field power wiring
• Contact configuration indicator
• Standard base for all pole configurations
• Robust pole terminals accept upto two 8 AWG wires
• Manual operator
• Fast, sure 3-point mounting, enclosed contacts resist contaminants for greater reliability
• Combination slotted/2-Phillips® screws
• Common, easily installed power poles change from NO to NC (or vice versa) simply by unlatching and rotating 180 deg
• Power poles rated for the range of tasks
• 30 A rated contacts
• 15 A motor rated
• A600 pilot duty rated
