The GE push button offering includes a complete line of pilot devices and stations for industrial and commercial applications. They are available in 30 and 22 mm sizes. The CR104P (30 mm) line heavy duty oil tight and watertight line is complete with a variety of accessories and enclosures.

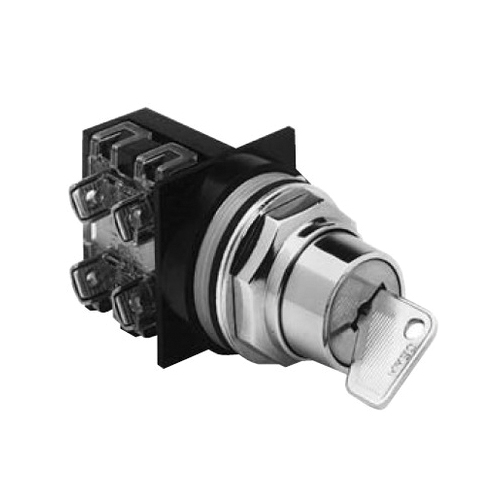

GE Non-Illuminated Selector Switch, Heavy Duty Oiltight/Watertight, 30.5 mm Size, 1NO-1NC Contact Configuration, Maintained Contact Mode, 10 A at 600 VAC/VDC Contact, Keyed Operator, 2 Positions, Cam Code: 1, Bezel/Housing: Chromium Plated Zinc, Key Operated Actuator, Screw Terminal, NEMA 1/3/3R/4/4X/12/13 Enclosure, Threaded Mounting, Environmental Conditions: -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9bbcffd8f9c46d5f142d33ef3bf24fc49ff01940620df88c75c5ab597ff8f180.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9bbcffd8f9c46d5f142d33ef3bf24fc49ff01940620df88c75c5ab597ff8f180.pdf

• Greater torque due to right sided ring design, greater torque can be applied during assembly and installation to provide oil-tightness
• Ease of assembly, 1-screw contact block mounting
• Multiple industrial environments in all units (except PTP) are suitable for use in NEMA 1/3/3R/4/4x/12/13 applications keeps installation foolproof
• Left key removal
• Chrome color, brass key, unfilled polyacetal cam, nylon contact block housing
• For some NEMA 4X applications, protective caps will improve corrosion resistance
• Chromium plated zinc ingot/zinc plated zinc ingot material
• Stranded solid copper wire connection type, silver alloy contact
