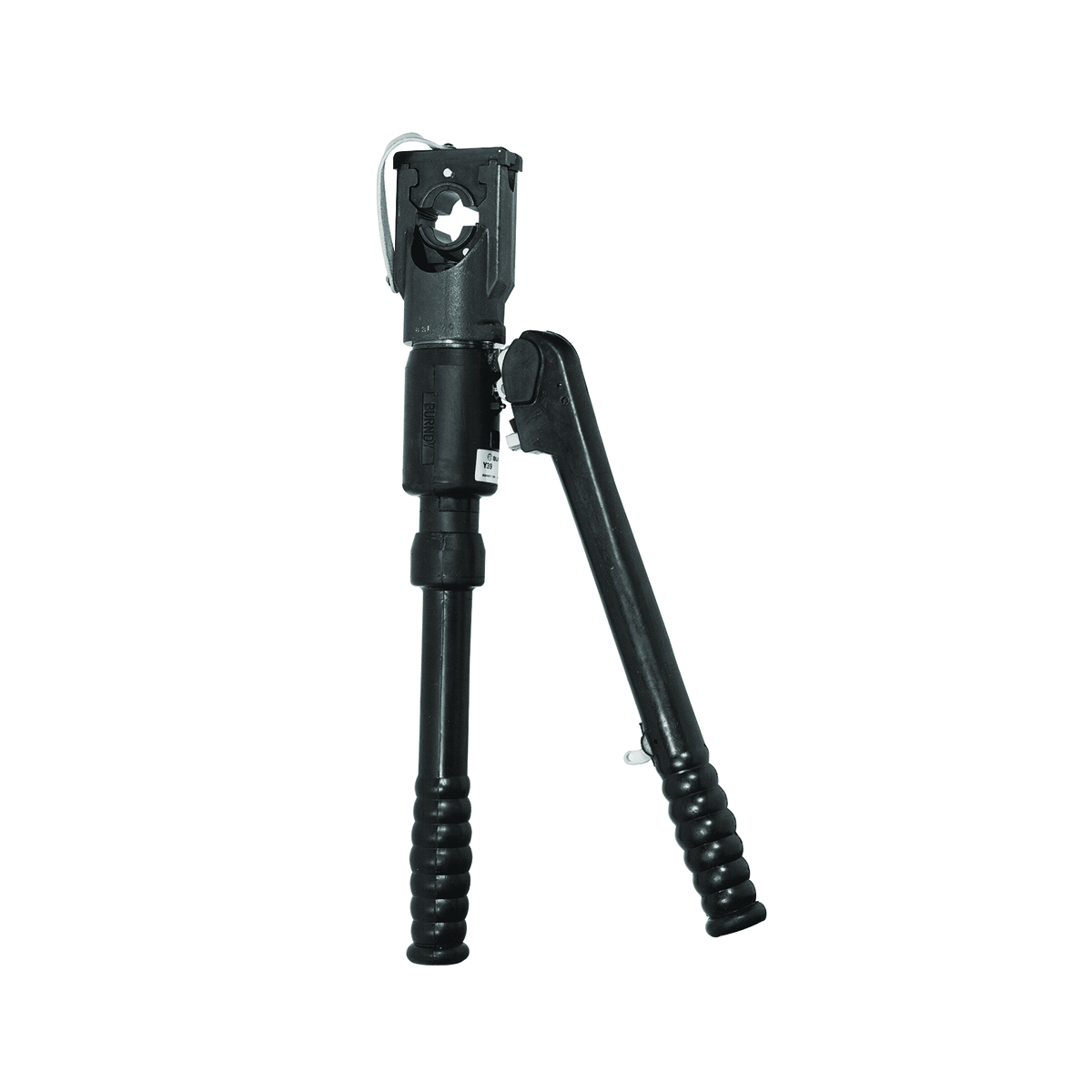

The versatile, lightweight Y39 weighs 13 lbs. and its small 3-1/8 wide head rotates 180 deg for convenience and flexibility. The tool provides 12 tons of crimping power, while its built-in overload valve automatically releases pressure when the crimp is completed. The Y39 is designed for easy die insertion and removal without ball checks or set screws. Its rapid ram advance and trigger-controlled release eliminate unnecessary pumping after every crimp. 5-year limited warranty.

BURNDY® HYPRESS™ Hydraulic Crimping Tool, Battery Actuated Hand Operated Self-Contained, Bare Tool Tool/Kit, Crimping Capacity: 8 AWG to 750 kcmil Copper, 12 ton Crimping Force, 10000 psi Operating, 3.93 in W x 23 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_dbd29b549bc143a0ce23dfba0df73d8e15e4620ecd88074989f448ee9fae9473.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_dbd29b549bc143a0ce23dfba0df73d8e15e4620ecd88074989f448ee9fae9473.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_19d94b0469841773d330df78e949d76e20605f4eebd72cf1947b4ad2c4399622.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_19d94b0469841773d330df78e949d76e20605f4eebd72cf1947b4ad2c4399622.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ee4da439475c888e47b8a1e126b36fe311da48f867c2a24dc8b1e8c3f43fb95c.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ee4da439475c888e47b8a1e126b36fe311da48f867c2a24dc8b1e8c3f43fb95c.pdf

• Easy to work in small tight spaces with only a 3-1/8 in wide compression head and short handle throw
• Easy to position tool for work with 180 deg head rotation
• Versatile and economical-tool works on all commonly used copper and aluminum conductors from 6 AWG stranded to 750 kcmil
• Body and handles covered with 3/16 in rubber
• Easy to locate and hold dies in position with the positive pushbutton die locks plus die changing is accomplished easily without ball checks or set screws
• Easy to remove or lock into position die holder with recessed spring latch plus leather strap to prevent loss
• Quality assurance is provided with automatic 10000 psi blow off pressure release valve for positive crimping
• RaPID ram advance eliminates requirement for pumping handles to advance ram to connector
• Trigger release allows ram to return to preset position
• Long continuous usage is aided with comfort grip handles
• 12 ton force developed
