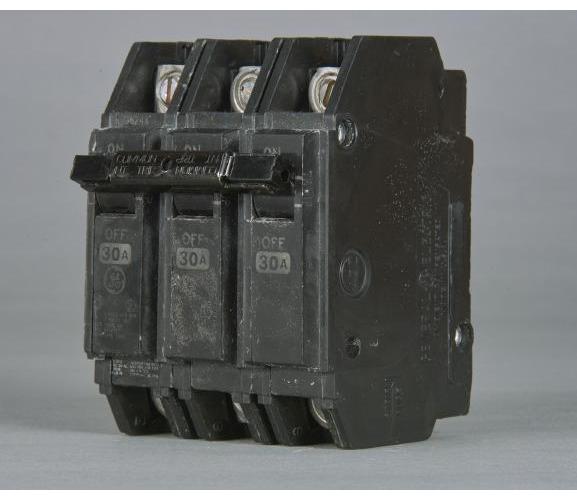

Q-Line circuit breakers are 1 in W per pole, compact, thermal magnetic devices designed for residential and commercial applications. The QC breakers are lug-lug versions of the Q-Line and are available for 35 mm DIN rail mounting. All Q-Line circuit breakers feature quick make/quick break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line breakers are available in 1, 2 and 3-pole versions and can be ordered with auxiliary contact and shunt trip accessories.

GE Molded Case Circuit Breaker, Type THHQC Type, Series: Q-Line, 240 VAC, 50 A, 50/60 Hz Frequency, 22 kA Interrupt, LI/Fixed Thermal Magnetic/Non-Interchangeable Trip, 3 Poles, 3 Phase, Pivot Handle Actuator, Line/Load Lug Connection, 8 to 3 AWG Wire, DIN Rail Mounting, 10 to 50 deg C, 3-9/32 in H x 3 in W x 2-3/8 in D Dimensions, Plastic

• Application Guide https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_TEB111010_Application_Guide.pdf
• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_THHQC1130LL_Catalog.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_THHQC32050WL_Datasheet.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10985/ID-SPE-THHQC32050WL_product_details.pdf
• Technical Bulletin https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_TEB111010_Technical_Bulletin.pdf
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_TEB111010_Warranty.pdf

• Copper stabs, tin plated for corrosion resistance, make the connection reliable and permanent
• Heat resistant thermoset cases and covers add stability and structural rigidity
• Trips are easy to spot because handles trip to the center position
• The dedicated calibration screw is cemented (not simply papered over) to prevent shifting, the result is stable calibration for optimum trip performance
• 8 to 3 AWG (Cu/Al) wire range
• 22 kA at 120 VAC, 22 kA at 120/240 VAC interrupt rating
