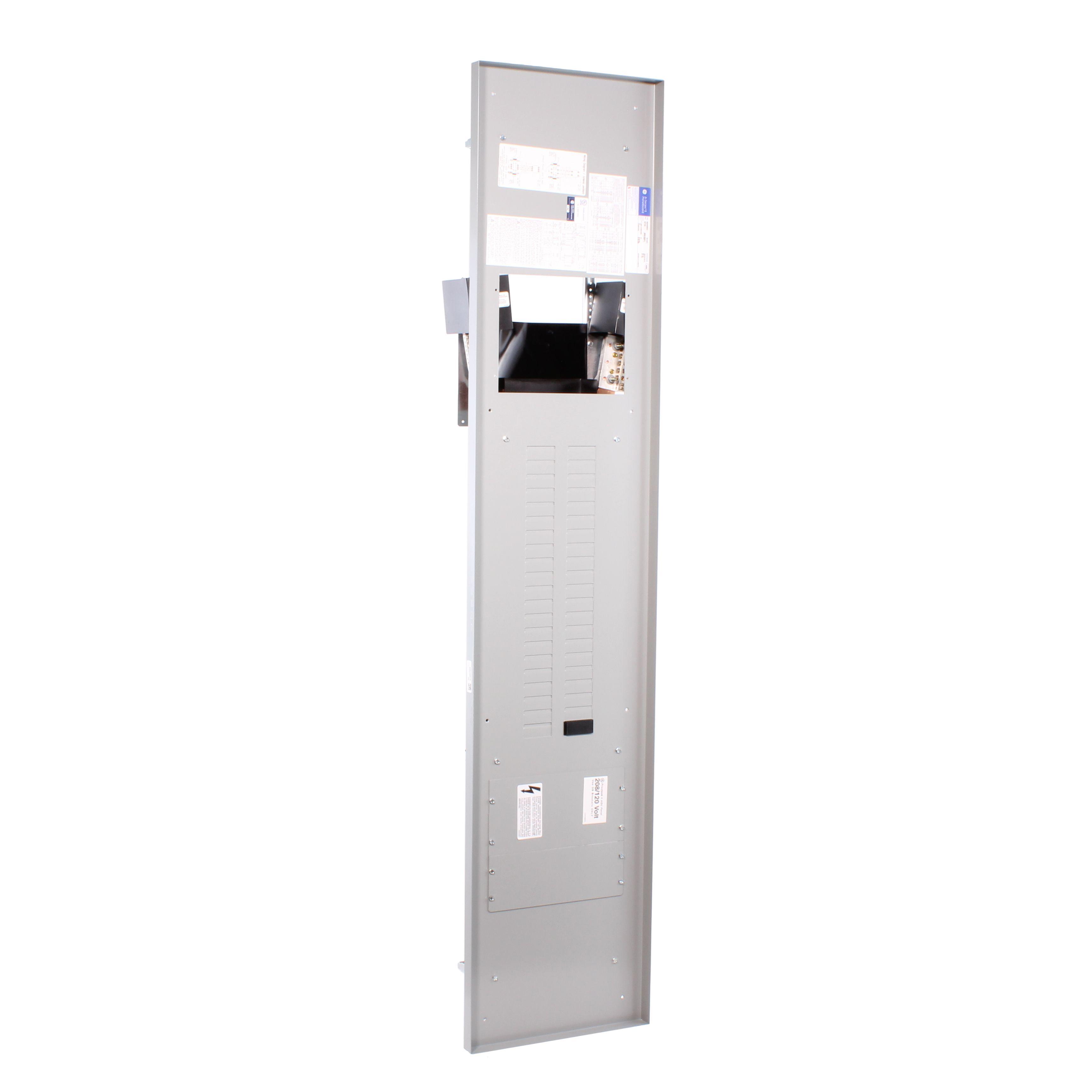

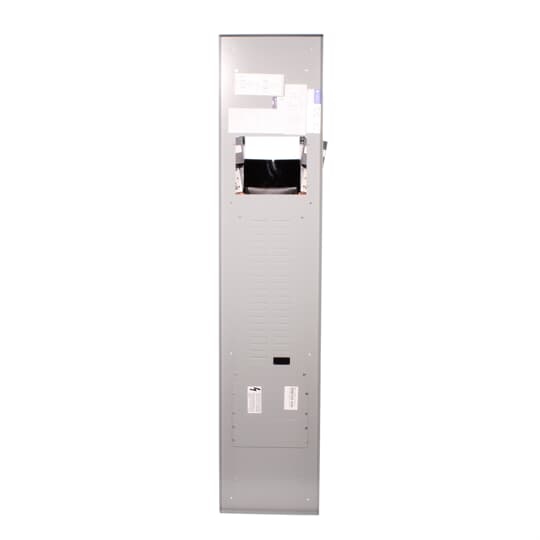

GE Pro-Stock™ Lighting Panelboard Interior, 3-Phase Type AQU Feed-Through, Series: A-Series™, 240 VAC, 600 A, 50/60 Hz Frequency, 65/200 kA Interrupt, 42 Spaces, 200 kA Short Circuit, THQB/THHQB/TXQB Breaker, Bolt-On Breaker Mounting, Copper Bus, Flush Mounting, NEMA 1/3R/12 Enclosure, 15-1/4 in W x 7 in D x 76 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_AQU3426RCXAXT1B4_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_AQU3426RCXAXT1B4_Specification_Sheet.pdf

• Maximum system voltage is up to 240 VAC for AQ panelboard line
• Field installable kits allow you to shift gears on the fly
• Standard Pro-Stock™ panels have the capability of adding sub-feed breaker or feed-through lug in the field
• All panel are convertible between main lug or main breaker
• Reversible interior and no need to specify top or bottom feed
• Extruded split neutrals speed and simplify wiring
• Modular kits allow for field installation of 200% neutrals and service entrance bonding straps
• Field installable TVSS (transient voltage surge suppression) kits, 200 kA per phase
• Up to six poles of sub-feed available in 400 and 600 A and up to 3 poles of sub-feed available in 225 A
• Solid state Spectra™ RMS or thermal magnetic breakers available as mains or sub-feeds
• Field installable TVSS (transient voltage surge suppression) kits
