Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QL breakers are plug-in versions of the Q-Line® used for connection to loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

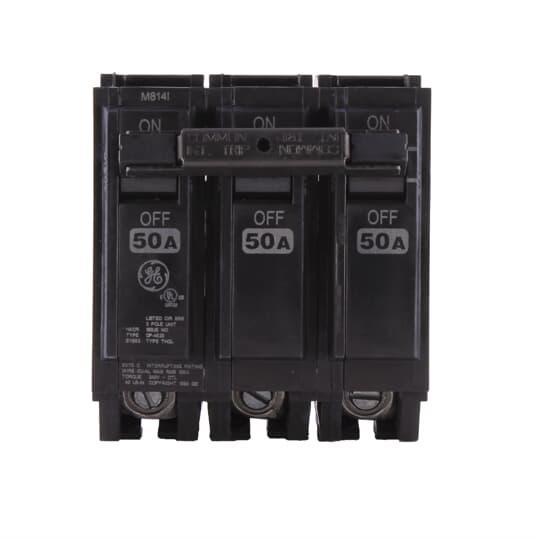

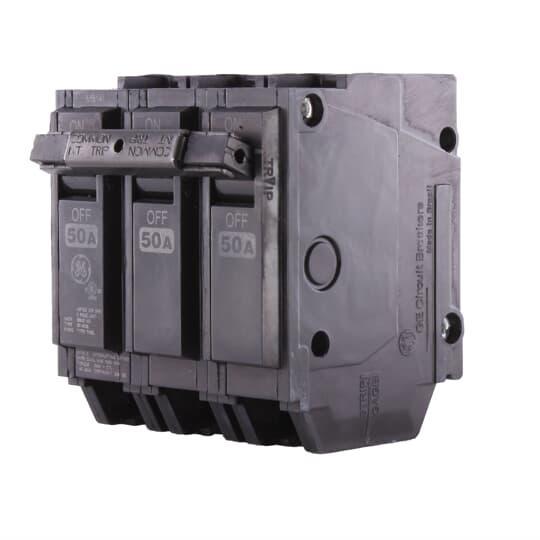

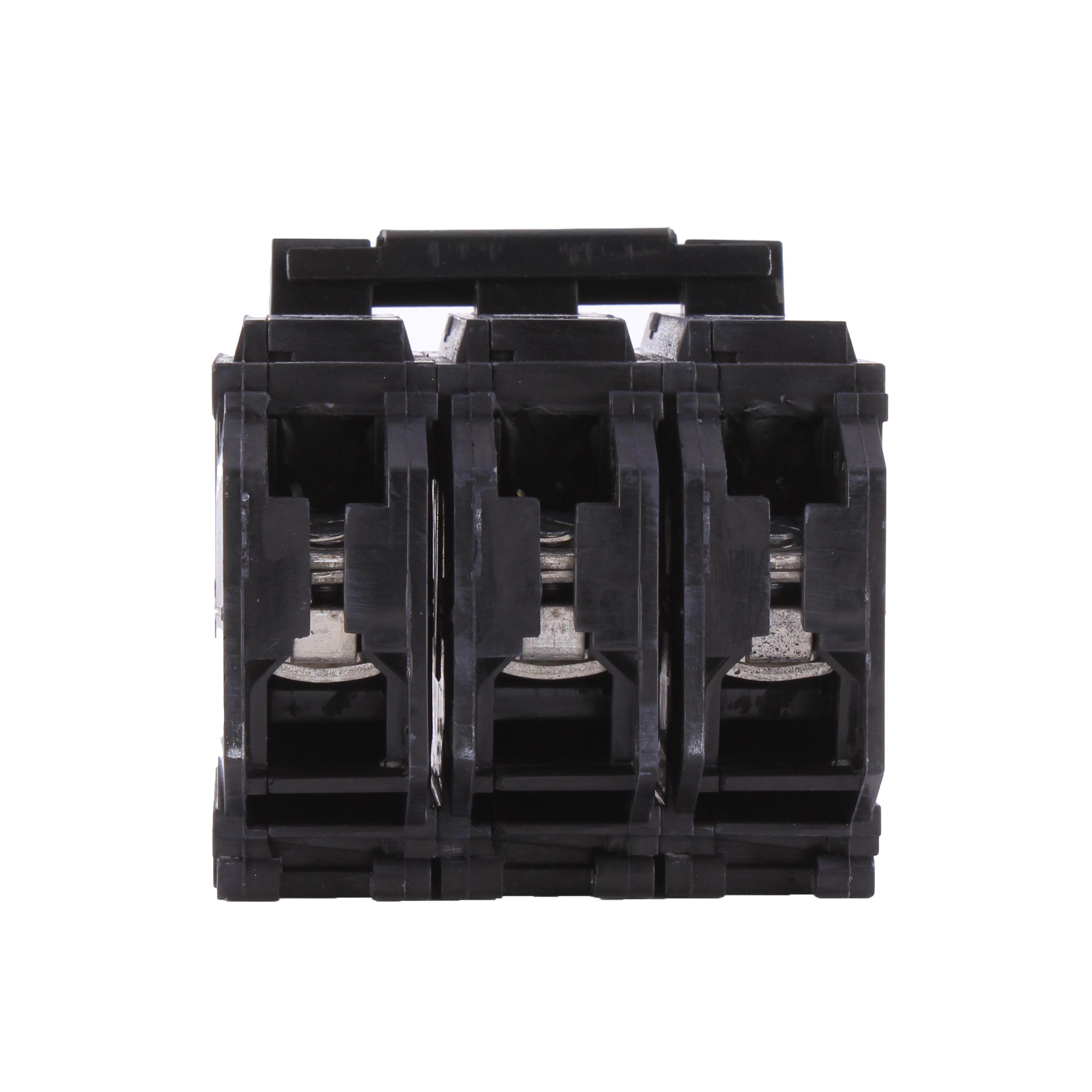

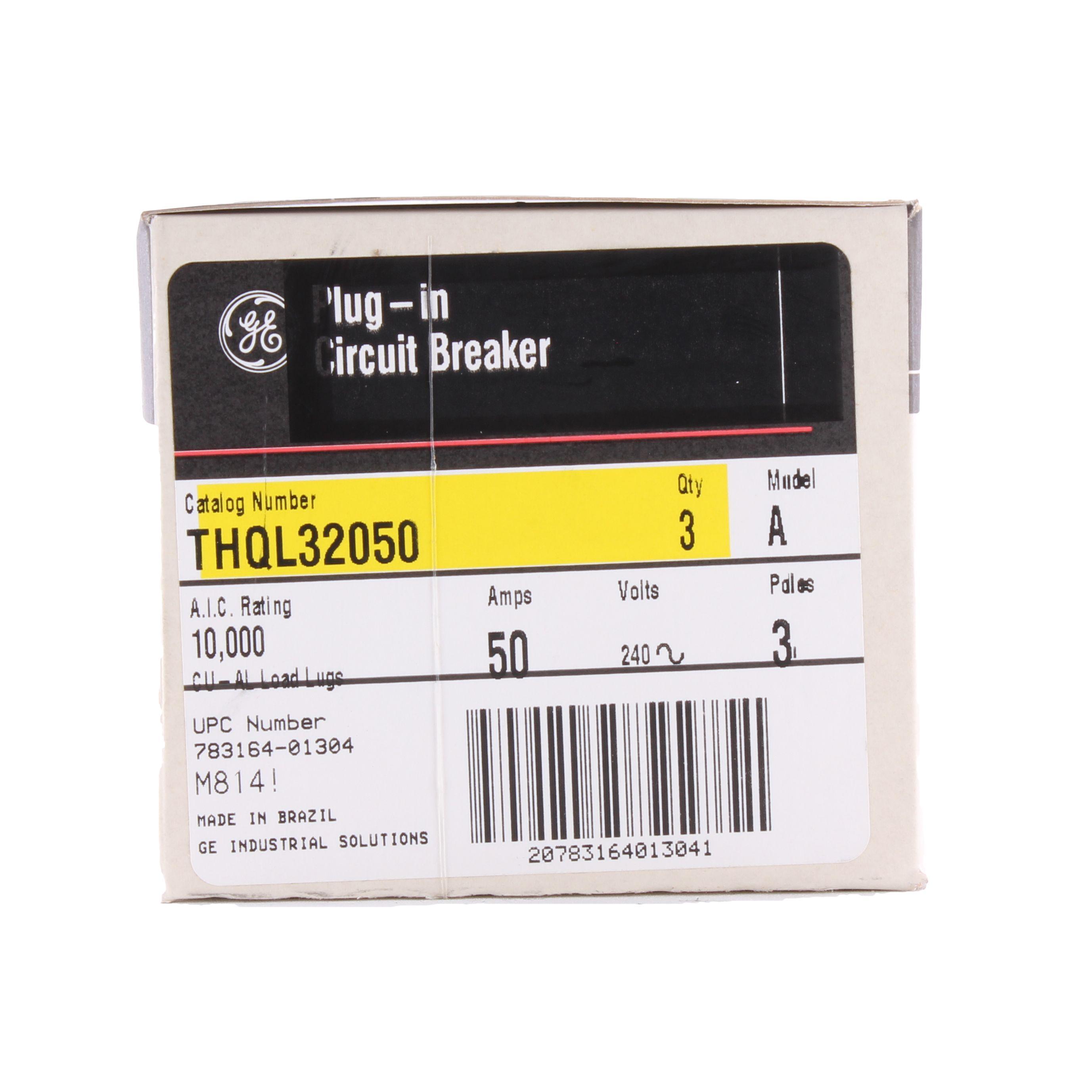

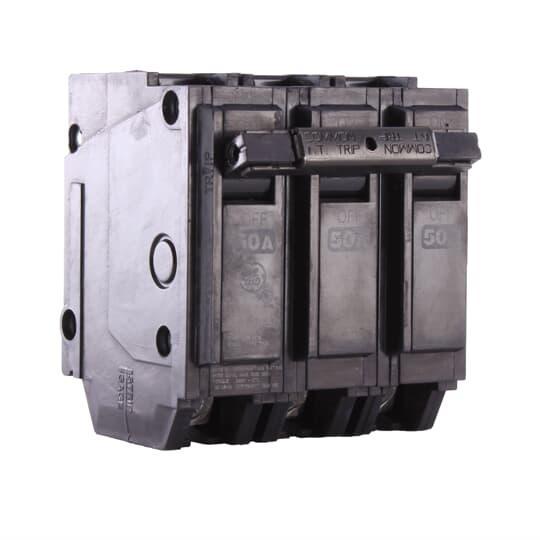

GE Q-Line® Molded Case Circuit Breaker, Type THQL, 120/240 VAC, 50 A, 10 kA Interrupt, Q-Line Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Load Lug Connection, 8 to 3 AWG Wire, Plug-In Mounting, 60/75 deg C, 3-9/32 in H x 3 in W x 2-3/8 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_THQL32050_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_THQL32050_Specification_Sheet.pdf

• Standard continuous current rated
• R5 go schedule
• Quick-make, quick-break mechanism
• Suitable for reverse feed
• Incorporates internal common trip bar
• Feeder plug-in circuit breakers
