PowerSpec HDF ballasts provide high-performance, full range dimming of linear and compact fluorescent light sources. PowerSpec HDF is ideal for aesthetic and architectural dimming in commercial spaces, as well as sophisticated, energy-oriented applications. PowerSpec HDF smoothly dims linear T5 lamps to 1% of full output, and T8, compact T5, T4, triple tube and quad tube, and circular T5 fluorescent lamps to 3% of full output.

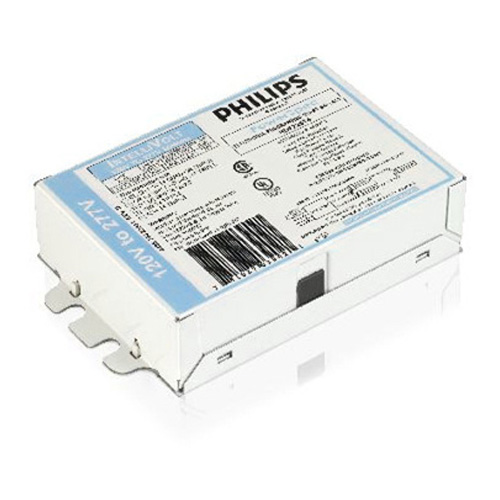

Advance PowerSpec HDF Compact Fluorescent Ballast, High Performance, CFQ26W Lamp, 26 W Lamp, 13 to 55 W, 120 to 277 VAC, 0.46 to 0.2 A, Programmed Start, 50 deg F Minimum Starting, Total Harmonic Distortion: 0.1, Power Factor: 0.99, Yes Dimmable, 2 Lamps, G24q Lamp Base Type, 70 deg C, Metallic, 4.98 in L x 3 in W x 1.18 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Philips_Lighting_HDF226T435M_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Philips_Lighting_HDF226T435M_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Philips_Lighting_HDF226T435M_Data_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Philips_Lighting_HDF226T435M_Data_Sheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=4IbjTFDZXBw
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Philips_Lighting_HDF226T435M_Warranty.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Philips_Lighting_HDF226T435M_Warranty.pdf

• Provides, full range dimming of linear and compact fluorescent light sources
• Automatic restart
• 1.6 nominal crest factor
• 0.375 mm wire strip length
• 18 AWG solid control wire gauge, series lamp connection
• 35M - ballast case packaged
• M5-housing
• Poke-in connector
• Black, white and tan color input terminals, red and blue color output terminals
