Cablofil® wire mesh cable tray concept based upon performance, safety and economy; three qualities which make Cablofil® wire mesh cable tray system preferred by installers. Cablofil® adapts to the most complex configurations, and its structure gives maximum strength for minimum weight. The ease of creating fittings, carried out on site, as well as the wide range of unique and universal accessories gives complete freedom in routing combined with exceptionally fast installation.

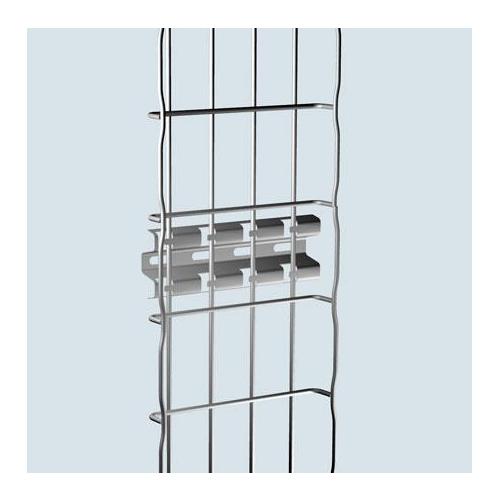

Cablofil® FAS Profile Attachment, Series: FAS P, 40 in Length, 1.04 in Height, For Use With: Wire Mesh Cable Tray, Carbon Steel, Pre-Galvanized

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e6649fea473280dba270967f1c20cf1100012468dc9990e7633c1256c5603900.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e6649fea473280dba270967f1c20cf1100012468dc9990e7633c1256c5603900.pdf
• VIDEO LINK http://www.youtube.com/watch?v=Yy9RJ_jqOTk

• For trapeze hung installations, use 4 in longer profile than tray width
• Example - for CF 54/300 tray (12 in) use FAS P400 (16 in)
• Maximum threaded rod size is 3/8 in For use with larger sizes of threaded rod, bracket holes must be drilled larger.Patented FAS style attachment secures tray without nuts and bolts
• Threaded rods, nuts and washers sold separately
