Safe, dependable, and easy. No other connector offers as much as the B-TAP® insulation piercing connector. B-TAP® connectors are great for a wide range of applications such as temporary circuits, emergency repairs, disconnect/reconnect, remodeling, maintenance and repair, street lighting, service entrance, risers in high-rise construction, commercial metering, transformers, secondary midspan tap and much more. Self-insulating and weather-proof, B-TAP® connectors are installed using only a standard box or socket wrench. A breakaway torque nut guarantees a perfect connection every time. The grease filled rubber end caps provide superior water and corrosion resistance, while the insulation design eliminates downtime and power interruptions. That translates into a 60% installed savings compared to split bolts. The exclusive breakaway torque nut simply snaps off when UL torque requirements are met. No more guesswork! B-TAP® connectors can be safely installed on energized systems, eliminating power interruptions and downtime.

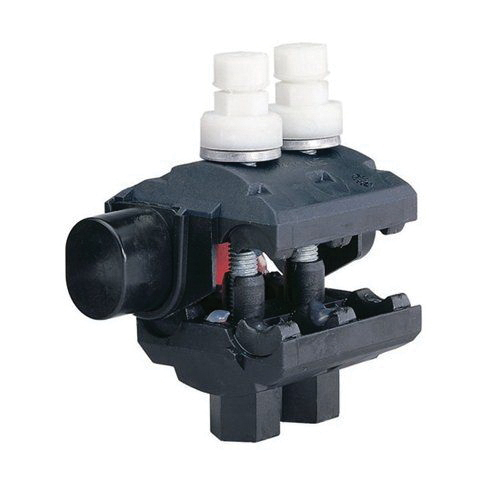

BUCHANAN B-TAP® Piercing Insulated Tap Connector, 2 to 4/0 AWG Main, 4 to 4/0 AWG Tap Conductor, 600 VAC, 1-Bolt, 3.2 in-lb Torque, 1/2 in Socket, 194 deg F, 4.4 in H x 2.4 in W x 3.2 in D

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BUCHANAN_BTC250_4_Installation_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BUCHANAN_BTC250_4_Installation_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_30_3194_Warranty.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_30_3194_Warranty.pdf

• Breakaway torque nut snaps off when UL torque requirements are met
• Second nut remains for easy connector removal
• Self-insulated housing eliminates the need for tape, safely installs on energized systems
• Grease filled end cap seals end of conductor for superior weather protection
• Grease filled boots protect copper teeth from corrosion and prevent arcing
• Hardened copper teeth pierce insulation and bite into conductors
• Torque regulating nut breaks off when proper tension is reached
• Easy 2 min installation requires only box/socket wrench
• Can be used on copper-copper, aluminum-aluminum, copper-aluminum and aluminum-copper when used in non-tension, insulated applications
• Installs on energized systems eliminating costly power shutdowns
• Unique turbo spacer keeps connector wide open for quick and easy installation
• Eliminates split bolts and tape
• Self-sealing, grease filled end cap ensures safe
• Weathertight connection
