Leviton® 74000/75000 series panel mounted surge protective devices provide seven-mode protection in 120/208 VAC and 277/480 VAC WYE-configured, 3-phase systems. These Type 2 devices are designed for installation at the service entrance, at branch panels or as dedicated transient surge protection for critical equipment. Both series feature individually fused metal oxide varistor arrays, the 74000 series uses 40 mm-diameter MOV while the 75000 series uses 53 mm-diameter MOV.

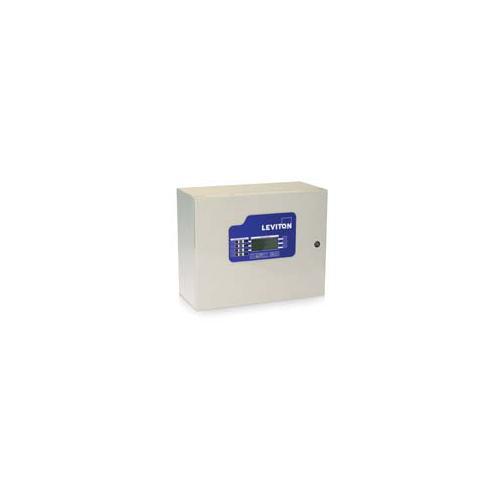

Leviton® Surge Panel, Type 2, Series: 74000, 120/208 VAC Electrical Rating, 50/60 Hz Frequency, 10 kA Short Circuit, 200 kA Peak Surge Current, 10 kA Nominal Discharge, Modes of Protection: L-L/L-N/L-G/N-G, LED/Noise Filtering/Surge Counter Indicator, 3 ph, Environmental Conditions: -10 to 60 deg C Operating, -20 to 85 deg C Storage, 5 to 95% Non-Condensing Humidity, UL94 V-2 Flammability, NEMA 12 Enclosure, Panel Mounting, Lead Wire Terminal, Powder Coated Steel, 15.8 in H x 19.71 in W x 8.33 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f47419850f437a8d9e78f06e1733c1fb144157bf39c66e6063e2989f8a3e6c71.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f47419850f437a8d9e78f06e1733c1fb144157bf39c66e6063e2989f8a3e6c71.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_db0cb550b14dea9854dc596da90e7d7250bc7681e6ca8200145a3bc511fbcc05.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_db0cb550b14dea9854dc596da90e7d7250bc7681e6ca8200145a3bc511fbcc05.pdf

• Protection for up to 200000 A (74000 series) or up to 320000 A (75000 series) surge current per mode
• 7-mode protection (each phase to neutral, each phase to ground and neutral to ground) for WYE configured, 3-phase AC systems
• Real-time diagnostics monitor power and suppression status for each phase and provide both LED indicators and audible alarm
• User replaceable plug-in modules eliminate the need to replace the entire surge panel following a surge event
• Surge event history including surge magnitude, time and date for each surge event can be viewed on an easy-to read display
• Equipped with dry contacts for remote monitoring
• Parallel hardwire using terminal block, accepts up to 6 AWG connection
• Surge panel with replaceable surge modules
