The power switch® line of industrial grade AC manual motor controllers provide safe, reliable control of a variety of motor loads. Suitable for use as motor disconnect, these switches are available for both 1 and 3-phase applications, with a continuous current rating at voltages up to 600 VAC and maximum horsepower ratings of 30 hp.

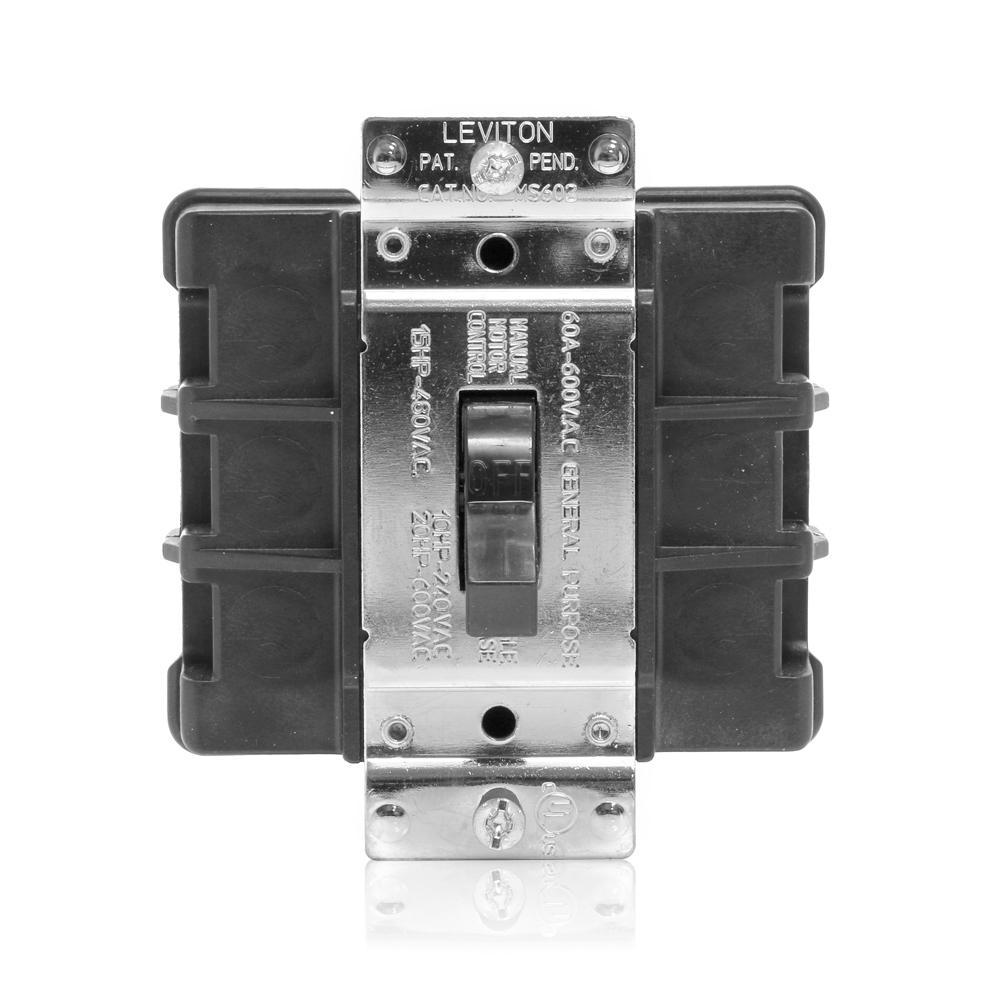

Leviton®, MS603-BW, AC Motor Starter Switch, Industrial Grade Manual Non-Grounding, 600 VAC, 60 A, 30 hp Power, 3PST Contact Configuration, 60 A at 600 VAC Contact, 3 Pole, Standard Toggle Actuator, Screw Connection, NEMA WD-1/WD-6 Enclosure, 6000 Cycles Operating Cycles, Polyester, Black, Environmental Conditions: -40 to 65 deg C Operating Temperature, 3.43 in W x 2.67 in D x 3.75 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_MS602-FW_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_MS602-FW_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_MS302-DS_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_MS302-DS_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_MS603-BW_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_MS603-BW_RoHS.pdf

• All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing
• Cam driven mechanism enhances fast make/slow break
• Silver alloy contacts for maximum conductivity and service life
• Insulating barrier between terminals provide isolation between phases
• Nickel plated brass mounting strap, terminal screw and external clamps for superior strength and corrosion resistance
• Oversized toggle provides positive actuation, even with gloved hand
