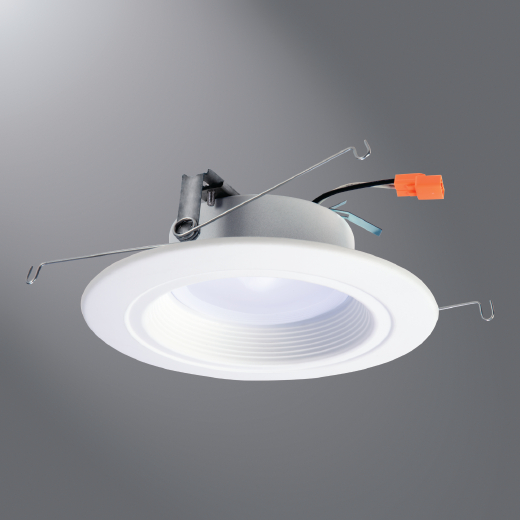

The Halo® ML56 LED downlighting system is a series of modular LED light modules for use with designated 5 in or 6 in ML56 LED trims in new construction, remodel and retrofit installation. Compatible with Halo 5 in H550 and 6 in H750, H2750 series LED housings. And in retrofit of existing housings the ML56 series fits 5 in or 6 in Halo, All-Pro® and others. ML56 system offers shallow trims for installation in Halo, All-Pro® and others shallow housings. ML56 light modules are offered in 600 series, 900 series and 1200 series, 80 CRI or 90 CRI and four color temperatures 2700 K, 3000 K, 3500 K, 4000 K. ML56 light modules are universal voltage 120 V 277 V and dimmable at 120 V. The ML56 lens provides uniform diffuse illumination standard.

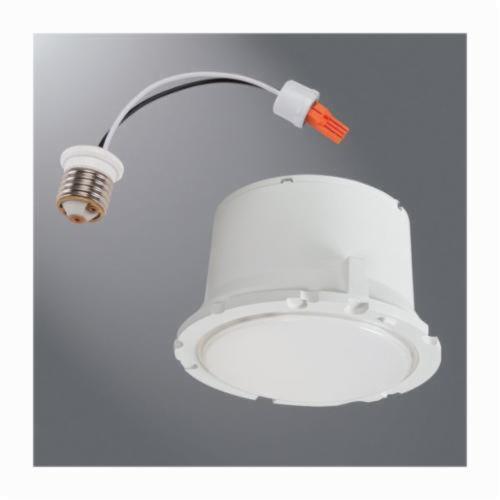

Halo LED Module, Universal, Series: 900 ML56, 120 to 277 VAC, 13.4 W Fixture, 0.051 A, LED Lamp, E26 Medium Screw Lamp Base, 5 in, 6 in Ceiling Opening, Baffle/Shallow Recessed Trim, 4000 K Color, 80 CRI, LED Driver Ballast, Convex Glass Lens, 900 Lumens, Recessed Mount, Die Cast Aluminum Housing, 6-1/2 in L x 6-1/2 in W x 6-1/2 in H

• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Halo_ML5606827_Brochure.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515128525002.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-BRO-v1-halo-ml56brochure-adv142886-bro.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Halo_ML5606827_Installation Instructions.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1518583176786.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-INS-v1-121003_ML56CLIP_inst_sht.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Halo_ML5609827_Specification Sheet.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1518584125972.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1537666825667.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-SPE-v1-halo-ml56900-80cri-141692-sss.pdf
• Specification Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Halo_ML5606827_Specification Sheet_1.pdf
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873502812.pdf
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/11143/StockGuide_Warranty_Page.pdf

• Designed for interchangeable trim choices of 5 or 6 in LED trims
• Dimmable on 120 VAC phase control dimmers
• UNV integral, thermally protected electronic LED driver
• A tight chromaticity specification ensures LED color uniformity, sustainable color rendering index (CRI) and correlated color temperature (CCT) over the useful life of the LED
• Impact resistant polycarbonate, high lumen transmission
• Diffusing lens for uniform illumination
