The EH Series Electronic Time Switches provide control for electric water heaters with to-the-minute accuracy in programming and time-keeping. The use of a water heater timer allows the customer to shift electricity use to "off-peak" time periods to reduce utility costs. These time switches can be programmed for repeat daily scheduling, 5-day work week scheduling, weekend scheduling or individual day scheduling. Models are available for both 120 and 240 VAC applications.

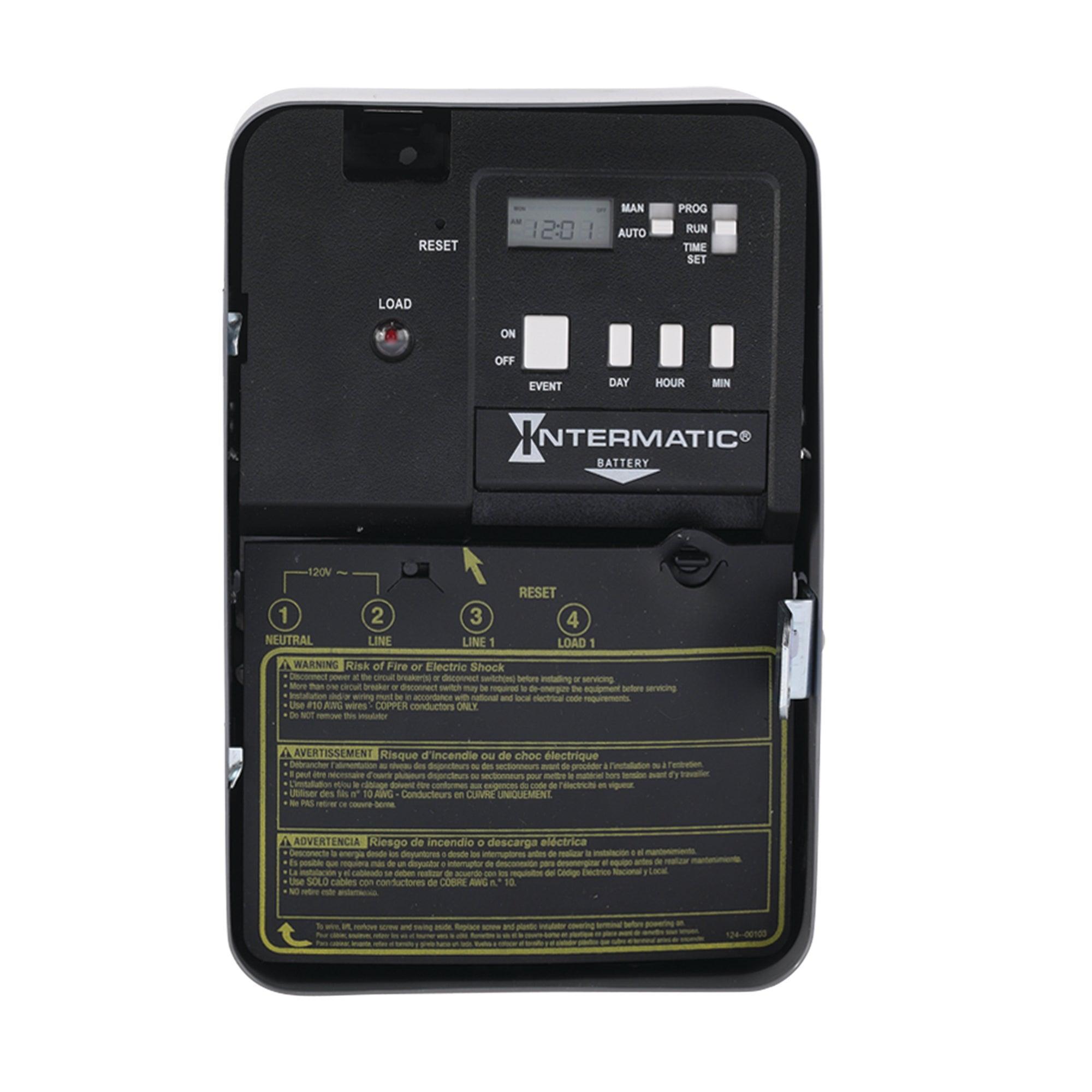

Intermatic® Electronic Water Heater Timer, Series: EH Series, Operation Mode: 7 days, 120 VAC, 30 A, 1 hp, 1 Pole, 1NO 1 Form A SPST Contact Form, 1 min to 7 days Time Setting, AA Alkaline Battery, Teeter/Wire Lead Electrical Connections, NEMA 1 Enclosure, -40 to 104 deg F, Wall Mounting, 7-3/4 in H x 5 in W x 3 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_EH10_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_EH10_Specification_Sheet.pdf

• 42 ON/OFF events per week
• 7-day scheduling
• To-the-minute programming and time-keeping accuracy
• External override switch
• LED load indicator
• Replaceable battery backup
