Eaton's B-Line series JIC panel enclosures provide reliable environmental protection and are used to house electrical controls and instruments, but are also commonly used as industrial wiring, junction, pull, and termination boxes.

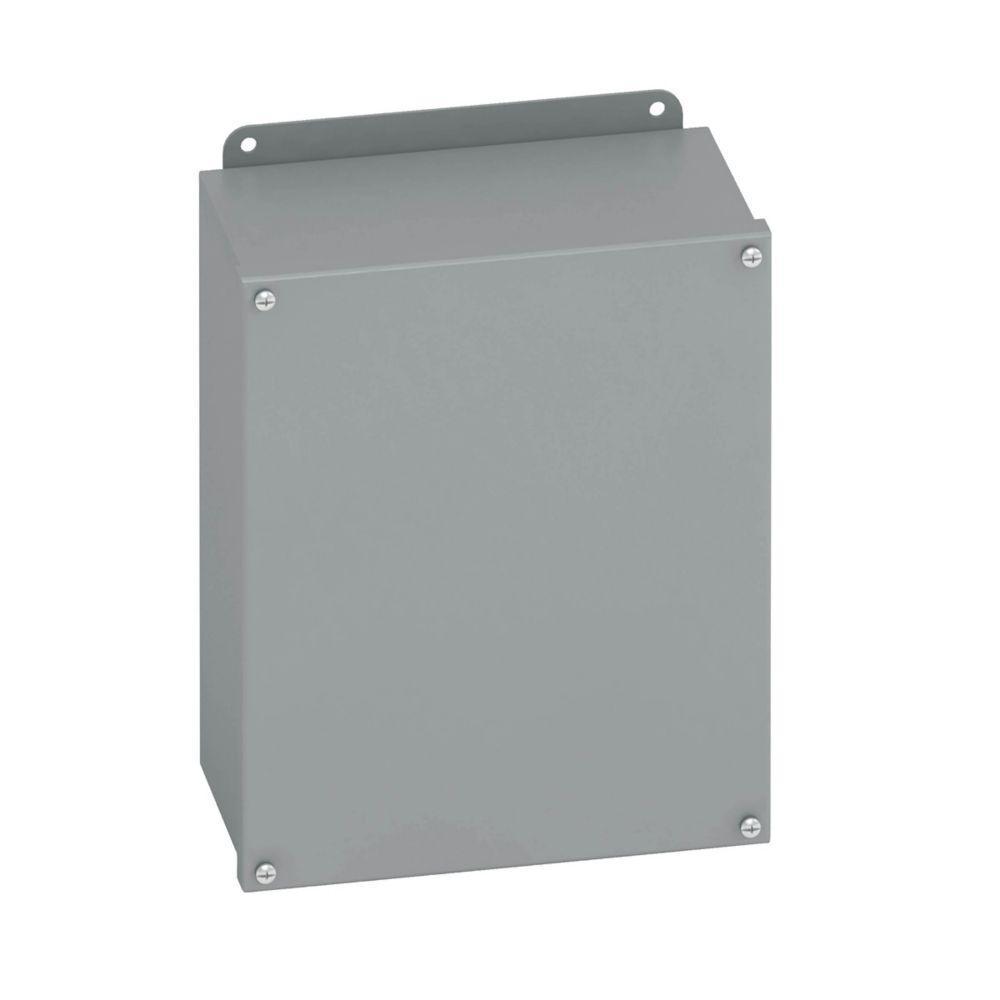

B-Line JIC Enclosure, 4 in Width, 3 in Depth, 6 in Height, NEMA 12/IP65 NEMA Rating, Screw Cover, 2.87 in W x 4.87 in H Panel, External Feet/Wall Mounting, Carbon Steel, Polyester Powder Coated/Phosphate Undercoat, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf

• Enclosure and cover are fabricated from 16 ga steel
• All continuous welded seams are finished smooth
• Cover is attached with captive screws which thread into sealed well nuts
• Cover has a fixed oil-resistant gasket
• Ground stud provided on cover
• External mounting feet are provided for secure wall mounting
• Protects against circulating dust, falling dirt and dripping non-corrosive liquids
• Captive plated screws, panel mount provisions
