The C8800 Series Short Range Cycle Timers come in various timing durations allowing for unprecedented control for various applications. These time switches can handle resistive loads up to 20 A and electric motor loads up to 1 HP at 240 VAC.

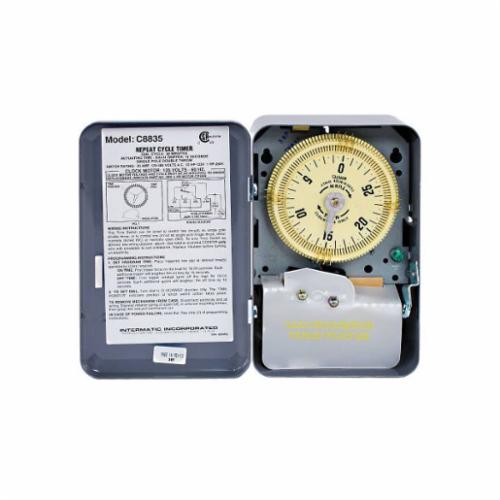

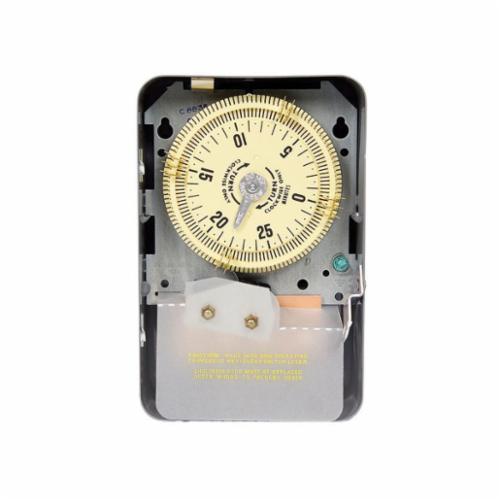

Intermatic® Cycle Timer, Short Range, Series: C8800, 125 VAC, 20 A, 1/2 hp, 1 hp, 1 Pole, 1CO 1 Form C SPDT Contact Form, 5 s to 30 min Time Setting, NEMA 1 Enclosure, -40 to 130 deg F, Wall Mounting, 7-3/4 in H x 5 in W x 3 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_251a005f72560096cc6bb6b54292866503830799f0c3a6caf7be3635747243a1.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_251a005f72560096cc6bb6b54292866503830799f0c3a6caf7be3635747243a1.pdf

• 10 combination ON/OFF trippers supplied with each switch
• 120 slot dial
• Ring type connection
• 100000 operating cycles
• 10 trippers provided
• Indoor enclosure
• Short range
• 20 A at 125/208/277 VAC resistive
• 30 min tripper actuating time
• 30 min cycle duration
• Combination 1/2 to 3/4 in nominal knockouts, one on back and on each side and two ON bottom
• 3 W maximum power input
• 1/2 hp at 120 VAC/1 hp at 250 VAC
• 60 Hz frequency
