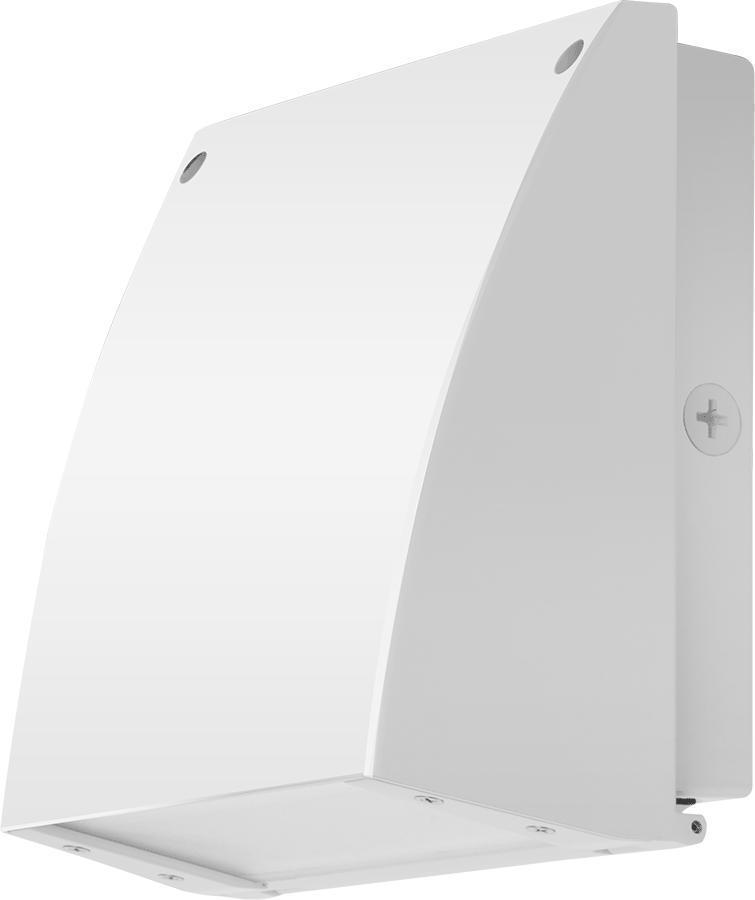

37, 57 and 62 W Slim wall packs are designed to cover the footprint of most traditional wall packs. they are suitable for mounting heights from 20 to 30 ft, and replace HID wattages from 200W MH to 320W MH. these ultra-high efficiency fixtures are available in cutoff or full cutoff models.

RAB Wallpack, Cutoff Standard, Series: SLIM, 120/208/240/277 VAC, 37 W Fixture, 0.31/0.19/0.16/0.14 A, LED Lamp, 37 W Lamp, 100000 hr Average Life, Cool White Light, 5000 K Color Temperature, 75 CRI, Constant Current Ballast, Micro-Prismatic Diffusion Glass Lens, 2688 Lumens, IP66 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, White Housing Finish, 9.3 in H x 9 in W x 5 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SLIM37_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_SLIM37_Installation_Manual.pdf

• Precision die cast aluminum housing and door frame
• The unique design of the tight lock gasket ensures no water or environmental elements will ever get inside the Slim
• Specular thermoplastic reflector
• Recommended mounting height up to 20 ft
• Superior thermal management with external air flow fins
• Die cast back box with (4) conduit entry points and knockout pattern for junction box or direct wall mounting
• Mercury and UV free
• -40 to 40 deg C temperature
• Covers footprint of most traditional wallpacks
• Easy installation with hinged access, bubble level and multiple conduit entries
• Tight lock gasket keeps elements out
• 73 LPW efficacy
• Our environmentally friendly polyester powder coatings are formulated for high durability and long lasting color and contain no VOC or toxic heavy metals
• Micro prismatic diffusion glass lens reduces glare and has smooth and even light distribution
• 0.31 A at 120 VAC, 0.19 A at 208 VAC, 0.16 A at 240 VAC, 0.14 A at 277 VAC
• Without photocell
