One hundred years after the introduction of the Condulet, Eaton remains the leader in conduit outlet bodies with its Crouse-Hinds series. The line has grown to six families manufactured in a variety of materials, and Form 7 bodies are offered in 11 different shapes to provide the most flexible offering on the market. Form 7 Condulet outlet bodies approach conduit in size for neat, compact installations. Many shapes and sizes are available for rigid threaded conduit. Our Form 7 family features an exclusive Snaptight and wedge nut cover attachment for an unobstructed cover opening, and an integrally gasketed cover saves customers inventory and labor costs. Form 7 is available as components or pre-packaged in various configurations as a SnapPack assembly.

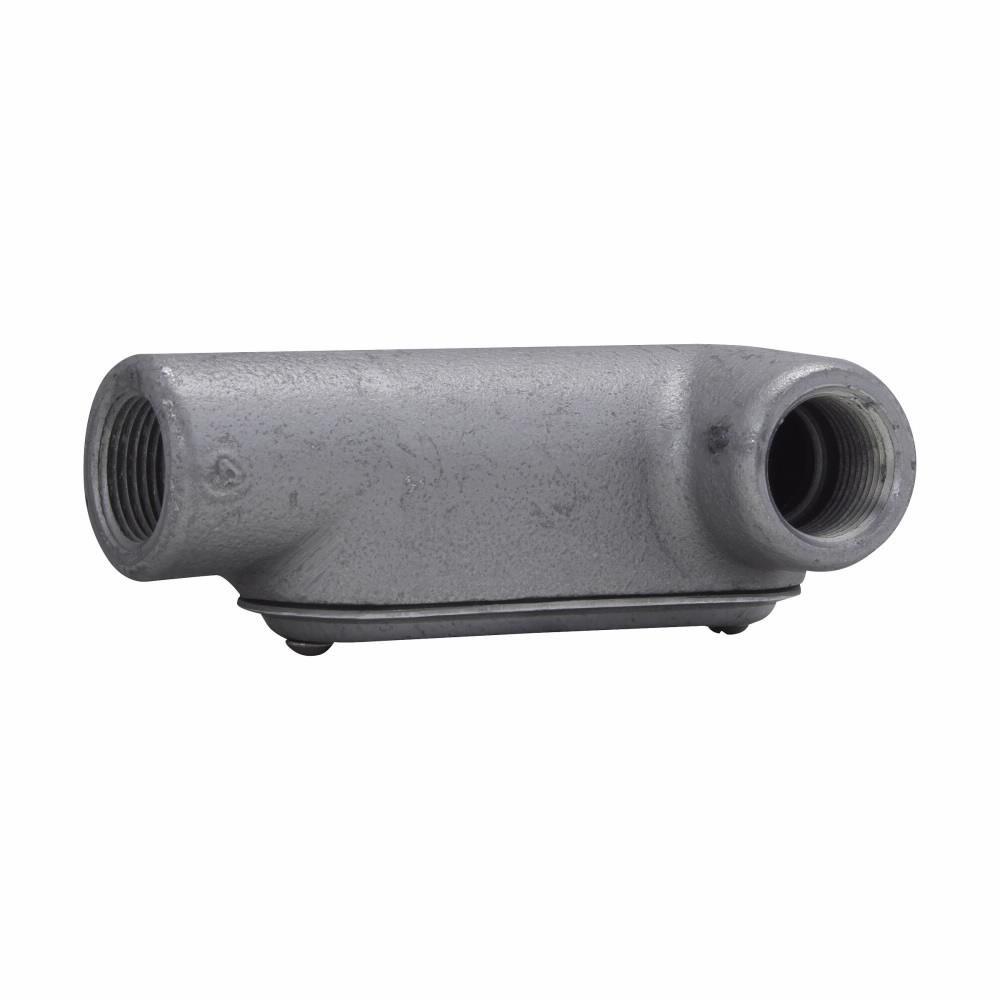

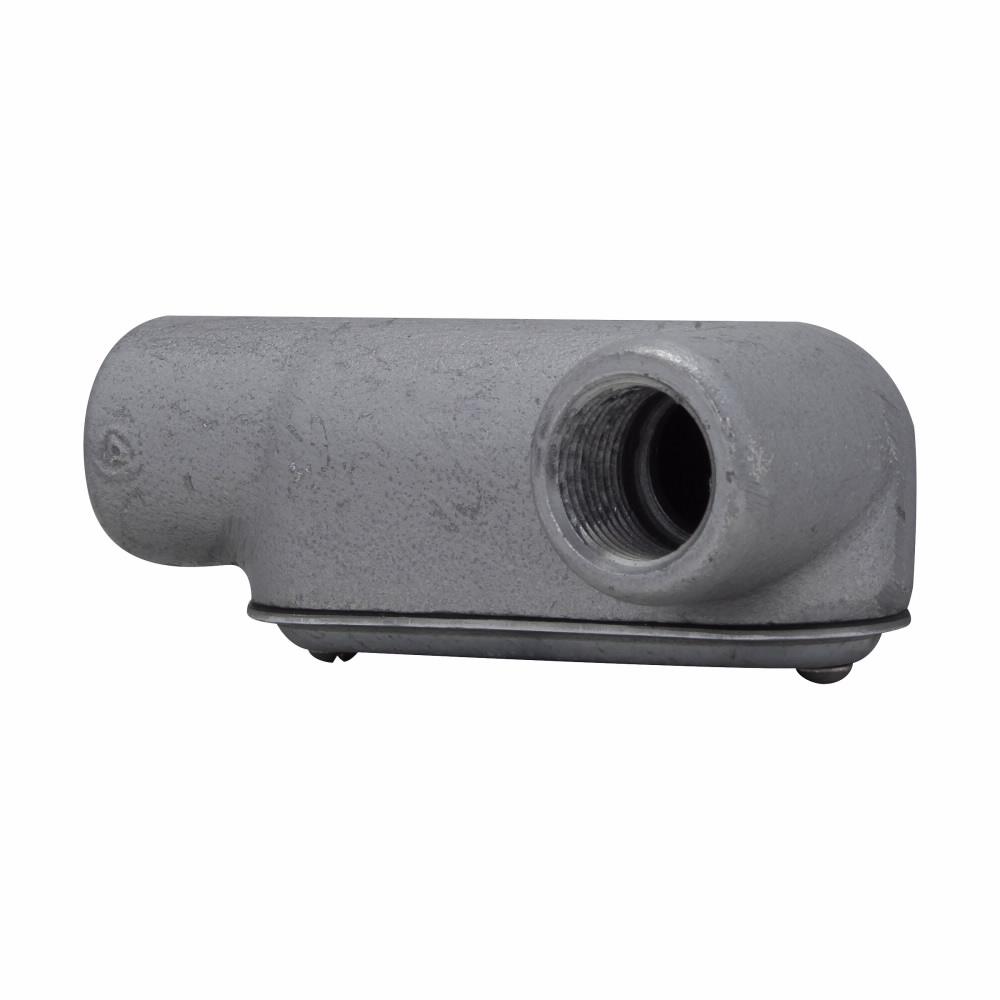

Crouse-Hinds Condulet® SnapPack™ Conduit Outlet Body, Type LR, 1-1/2 in Hub, 2 Hubs, 7 Form, NEMA 3R Enclosure, Thread Connection, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized, 7-1/8 in L x 2.56 in W x 3-9/16 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/970F_SA_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/970F_SA_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LB38SS_Installation_Manual_02.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LB38SS_Installation_Manual_02.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LR57_CG_Specification_Sheet_01.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LR57_CG_Specification_Sheet_01.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LB38SS_Technical_Bulletin_02.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/LB38SS_Technical_Bulletin_02.pdf

• All SnapPack™ product is individually bar coded to facilitate more efficient inventory control
• Distributors and end users need to stock a single sku instead of three separate component numbers, order the body, cover and gasket with one catalog number saving transaction costs and making product selection and merchandising fast and easy
• Form 7 conduit bodies are compact with a round back design for neat, efficient installations
• Conduit hubs have tapered threads and feature integral bushing for protection of wire insulation
• Sheet steel wedgenut cover is provided with integral gasket
• The wedgenut design facilitates installation and removal
• Nuts and screws are held captive in cover
• Cover screws are stainless steel with a combination slotted and phillips head, for easy installation and superior corrosion protection
