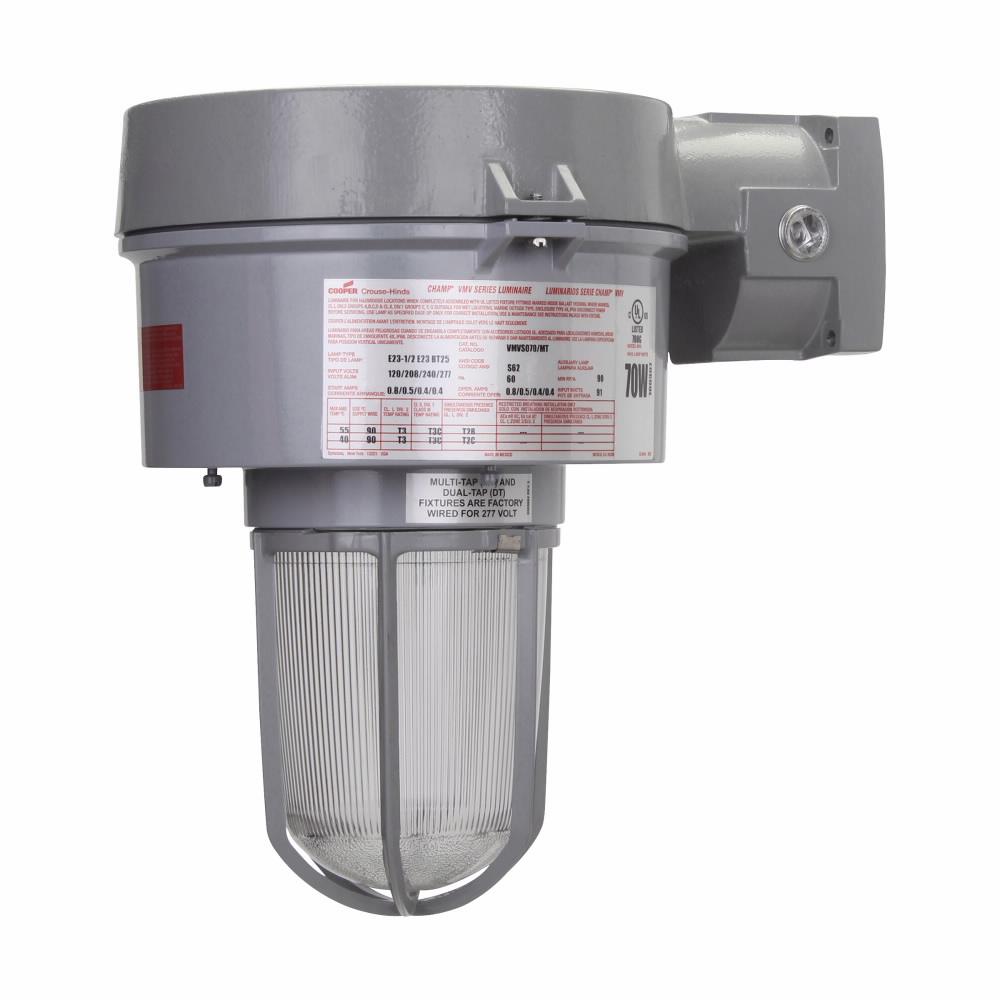

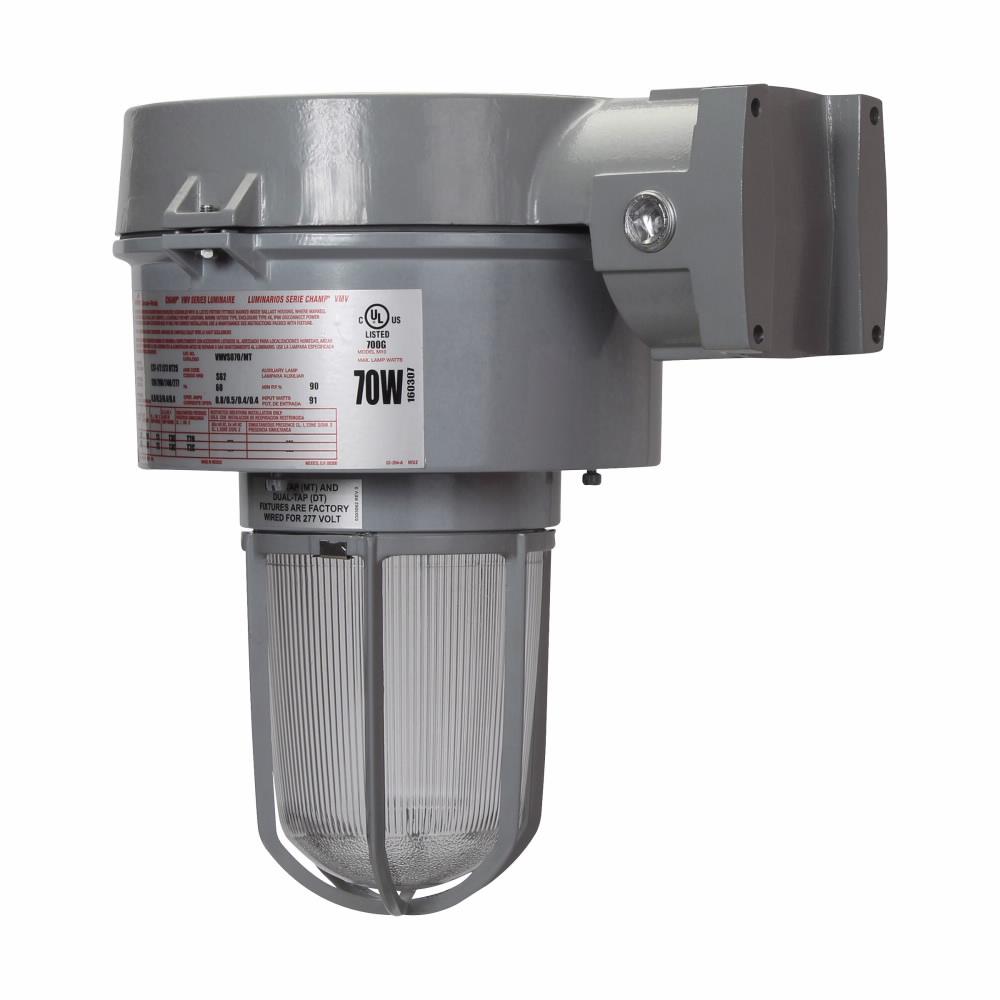

The Champ® VMV HID light fixture from Eaton's Crouse-Hinds Division provides a compact, lightweight design that's ideal for a wide range of mounting heights within hazardous area applications. Available in 50 W through 400 W with seven mounting arrangements to suit any lighting layout, the VMV HID is approved for use in Class I, Division 2 and Class I, Zone 2 locations. The rugged design stands up to challenging environments where moisture, dirt, dust, vibration, corrosion and rough usage are problems. These light fixtures are ideal for indoor and outdoor general area lighting in manufacturing plants, refineries, chemical, petrochemical and other industrial process facilities, waste or sewage treatment facilities, offshore, dockside and harbor installations, and other heavy industrial applications.

Crouse-Hinds Champ® HID Light Fixture, Through Feed, Series: VMV, 120/480 V, High Pressure Sodium Lamp, 100 W Lamp, Multi-Tap Ballast, NEMA 3/3R/4/4X/IP66, Wall Mount, Copper-Free Aluminum Housing, Epoxy Powder Coated Housing, 13-13/16 in W x 13-7/8 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_78fe7826923d5e377d7d485fb67c444cbc55e102c2abd9c805cc6d0b22d73fd5.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_78fe7826923d5e377d7d485fb67c444cbc55e102c2abd9c805cc6d0b22d73fd5.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a191af8aa4de6e0f4a61e78ceca9c659f58387159e562fbe4105d6dcf984a7c1.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a191af8aa4de6e0f4a61e78ceca9c659f58387159e562fbe4105d6dcf984a7c1.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7008287bdd9ca7b120b82cfb4abc19d9f914fac151099020494f3eea1fec1b6d.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7008287bdd9ca7b120b82cfb4abc19d9f914fac151099020494f3eea1fec1b6d.pdf

• Compact, lightweight design is ideal for medium and low mounting heights
• Cast copper-free aluminum construction (less than 0.4 of 1% copper) and epoxy powder finish provide excellent resistance to corrosion
• Hinged ballast housing for ease of installation and maintenance
• All luminaires are designed to perform in a 40 deg C ambient temperature selected luminaires are suitable for ambient temperatures up to 65 deg C
• Superior gasketing seals between the mounting module, housing and optical assembly for optimum performance in wet and corrosive environments
• Hubs with an integral conduit stop and bushing to help prevent damage to field wiring during installation
• Low ambient capability to -40 deg C
• Dome and 30 deg angle reflectors made of bright white Krydon material provide superior reflectivity, with twist-on feature requiring no tools or additional hardware; will not chip, peel, dent, rust or corrode
• Grounding wire for safety
• Mogul base porcelain lamp socket
