Eaton's B-Line series JIC panel enclosures provide reliable environmental protection and are used to house electrical controls and instruments, but are also commonly used as industrial wiring, junction, pull, and termination boxes.

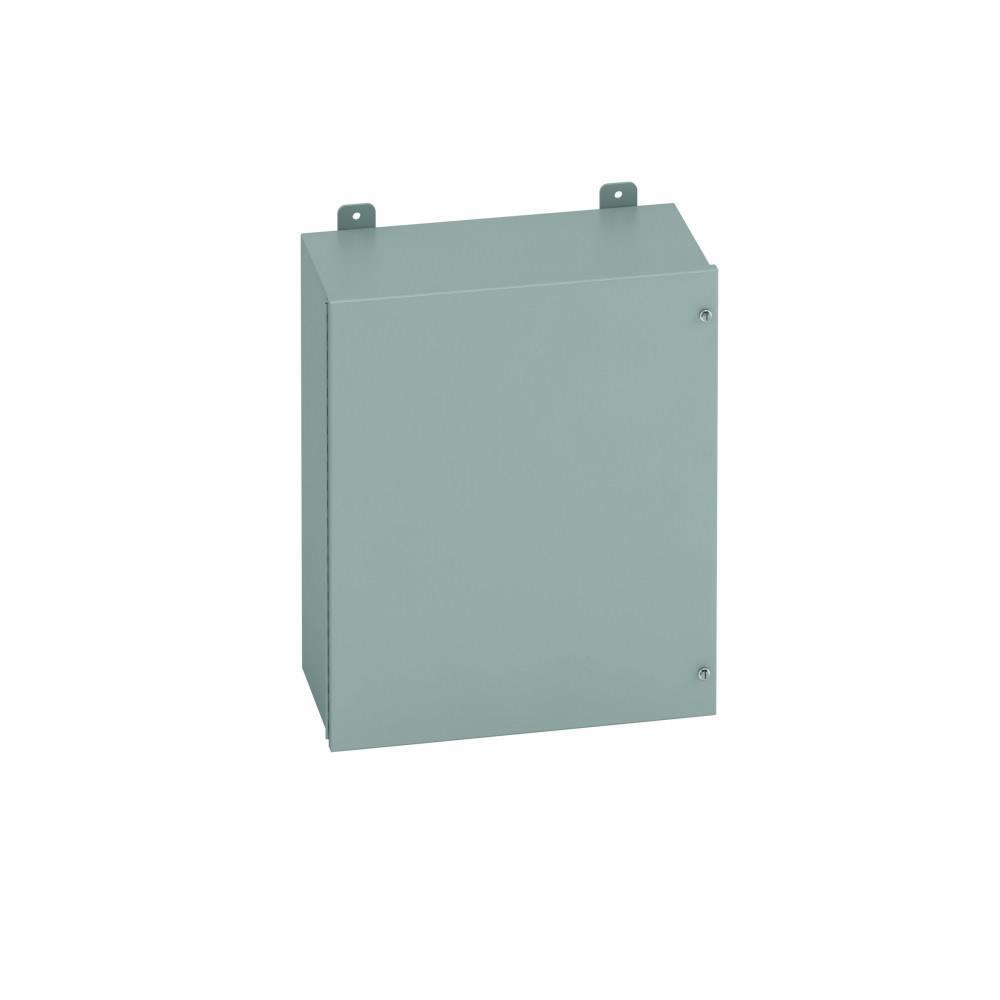

B-Line JIC Enclosure, 1-Door, 20 in Width, 7 in Depth, 24 in Height, NEMA 12/IP65 NEMA Rating, Large Continuous Hinged/Screw Cover, 16.87 in W x 20.87 in H Panel, External Feet/Wall Mounting, Carbon Steel, Polyester Powder Coated/Phosphate Undercoat, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_24207-12CHSC_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_24207-12CHSC_Specification_Sheet.pdf

• Enclosure and door are fabricated from 14 ga steel
• All continuous welded seams are finished smooth
• Door is secured to the body with a continuous hinge on one side and captive hex head screws which thread into sealed well nuts ON the opposite side
• Each door has a print pocket
• Door has a fixed, oil-resistant gasket
• Ground stud provided on door
• Heavy gauge panel mounted to 3/4 to 16 collar studs is provided with enclosure
• External mounting feet are provided for secure wall mounting
• Panels have a white enamel finish
• Continuous piano hinge, white back, print pocket, plated screw
