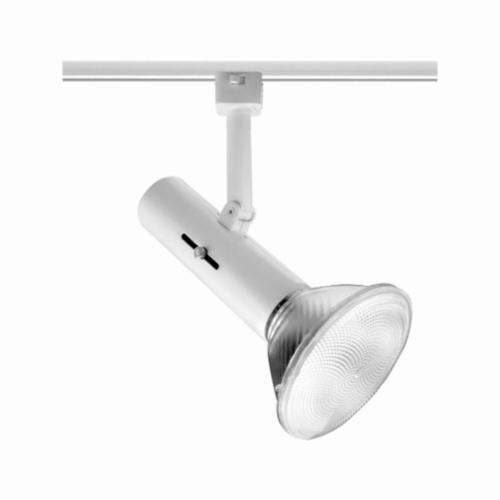

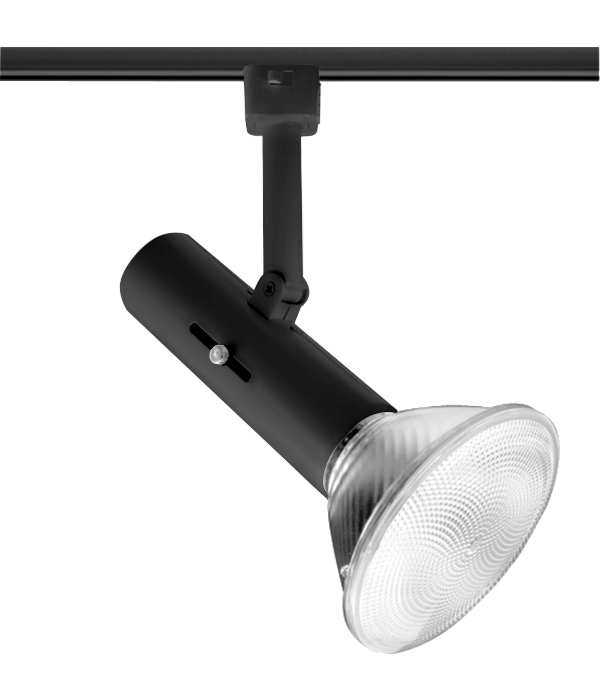

The economical Juno® Trac-Master™ T301 series universal is a basic line voltage trac fixture that accepts a wide range of popular PAR halogen and B/BR incandescent lamps.

Juno® Trac-Master™ Track Head, Line Voltage, Series: T301, Incandescent Lamp, 120 VAC, 250 W Lamp, 4-3/8 in Maximum Extension, Medium Lamp Base, 1 Lamps, Universal Head, Steel Housing, White Housing

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520592927056.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520592927056.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_T301WH_Data_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_T301WH_Data_Sheet.pdf

• Steel housing with Lexan® polycarbonate stem
• 90 deg C vertical aiming capability and 358 deg C rotation
• Medium base porcelain socket with nickel plated copper screw shell, socket is adjustable for proper lamp positioning
• Trac adapter features copper alloy contacts that provide precise spring action
• No arcing and will not take a set
• True, positive electrical ground
• Spring loaded locking latch with embossed polarity arrows secures trac light to trac
• Pull-up contact to up position for 2-circuit application
• Polarity indicator embossed on bottom of adapter
• For use with 27 to 50 W R20/35 to 50 W PAR20/45 to 85W BR30/35 to 75 W PAR30/65 to 120 W BR40/45 to 150 W PAR38 lamps
