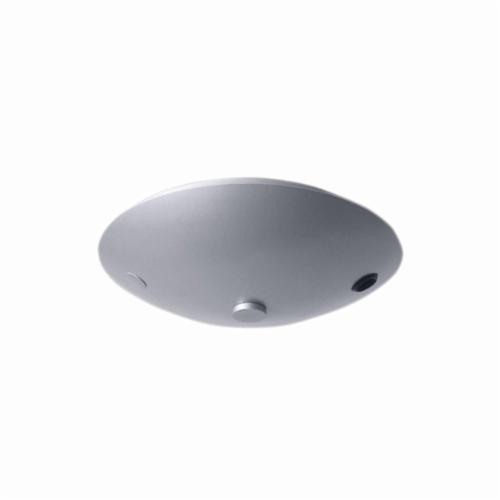

Juno® TF6300SL Series, 12 VAC 300 VA surface mount magnetic transformers are rated for 150 to 300 W incandescent loads. They mount over 4 in junction boxes and feature a thermally protected primary, a manually resettable, fast acting magnetic circuit breaker on the secondary and 120 VAC input. These surface mounted transformers can be used in Flex 12™ or trac 12/25 installations in a variety of configurations. For best dimming results, use dimmers designed specifically for magnetic transformer applications. UL listed, CSA certified, compatible only with systems rated for 25 A operation.

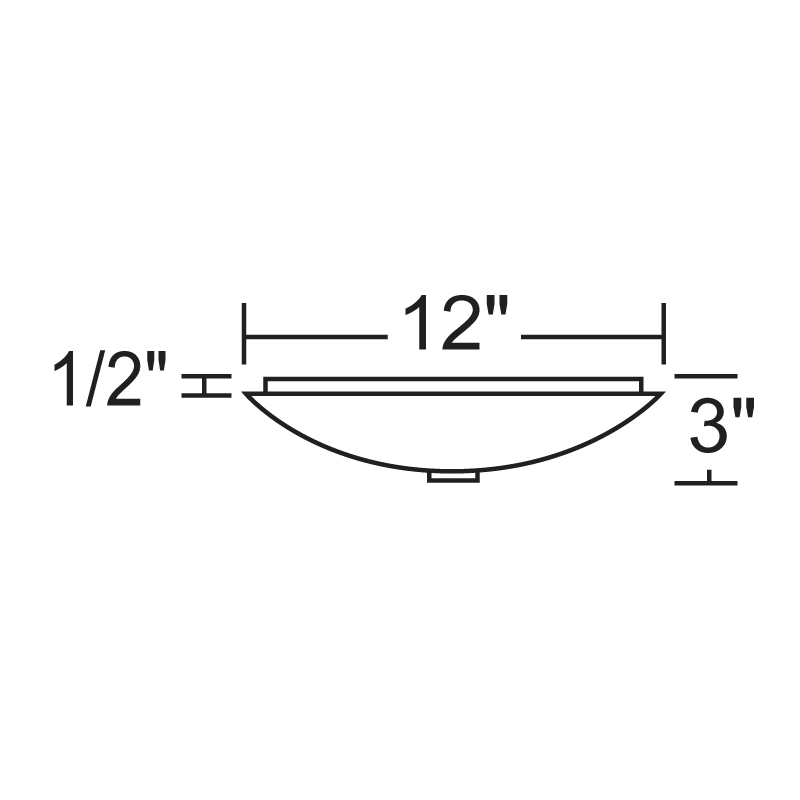

Juno® Magnetic Transformer, Low Voltage Remote Toroidal, Series: TF5600, 120 VAC Input, 12 VAC Output Electrical Rating, 140 deg F, Surface Mounting, Silver, 12 in L x 3 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_TF5150BL_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_TF5150BL_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_TF6150E_SL_Installation_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_TF6150E_SL_Installation_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bc46e5e35ab674cc6036708852037db75fcd63dcb4cf3f556eea8ec5230b57a6.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bc46e5e35ab674cc6036708852037db75fcd63dcb4cf3f556eea8ec5230b57a6.pdf

• 12 VAC 300 VA magnetic toroidal surface mount transformer, rated for 150 to 300 W for incandescent loads
• Mounts over standard 4 in junction box, thermally protected primary
• Manually resettable, fast acting magnetic circuit breaker on secondary
• For best results use dimmer designed for use with magnetic transformers
