200A series was designed to provide all of the critical day to day features of handheld multimeters in a smaller, ergonomic design. Look to this series for CAT IV 300 VAC, CAT III 600 VAC and CAT II 1000 VAC applications. Backed by Greenlee® lifetime limited warranty, the 200A series multimeters offer the professional electrician superior value when compared to the competition.

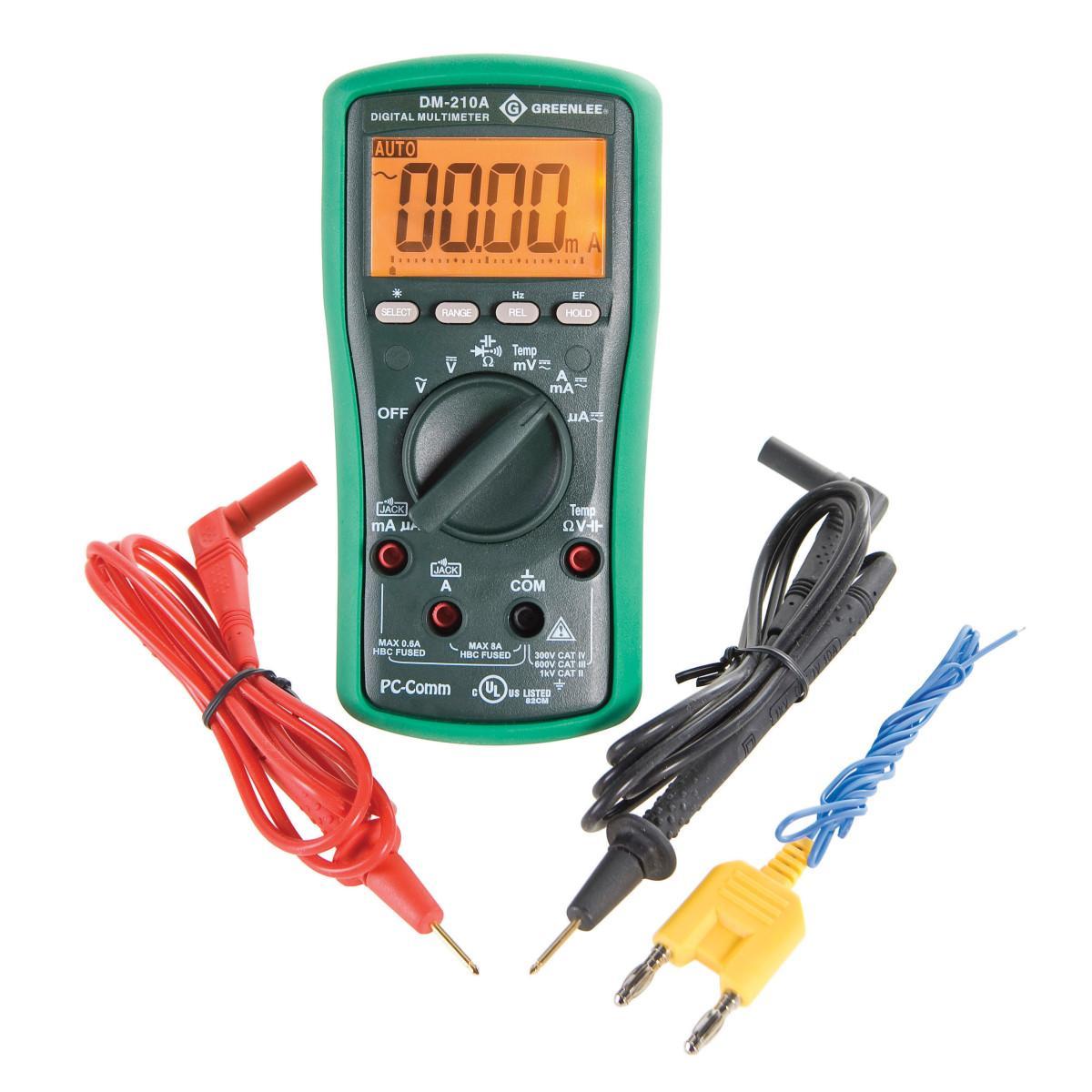

Greenlee® ESM™ Digital Multimeter, Series: 200A, 60 mV to 1000 VAC/VDC, 600 mA to 10 A, 600 Ohm to 60 MOhm, 600 nF to 300 uF Measuring, 600 Ohm, 6/60/600 kOhm, 6/60 MOhm Resistance, Safety Rating: CAT IV 300 VAC, CAT III 600 VAC, CAT II 1000 VAC, 60/600 nF, 6/60/600/3000 uF Capacitance, Backlit LCD Display, (2) 1.5 VDC AAA Battery, -58 to 1832 deg F

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520609009347.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520609009347.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520599802521.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520599802521.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Greenlee_DM_210A_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Greenlee_DM_210A_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520565405041.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520565405041.pdf

• Measures voltage, current, resistance and frequency
• Tests continuity and diodes
• Two voltage detection modes - non-contact or using a single test lead
• BeepJack warns when test leads are incorrectly inserted in current measurement terminals
• Automatic and manual rangeselection
• Relative offset mode to see changes in measurements
• Data hold
• Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
