Eaton offers a wide variety of solutions for horizontal and vertical cable runs between racks and enclosures. All cable pathway devices are UL classified and meet or exceed TIA/ EIA standards for cable pathways.

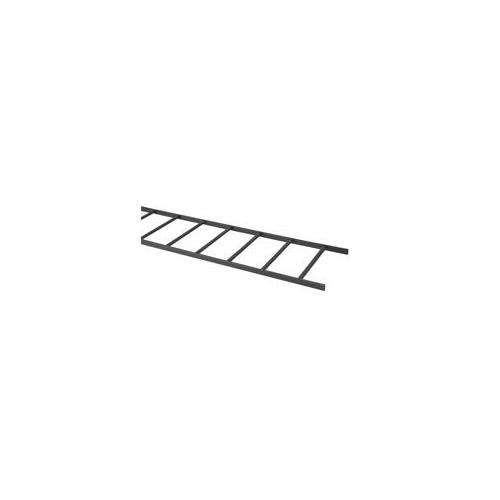

B-Line Runway Tubular Stringer, Value Line, Series: SB17, 119-1/2 in Length, 12 in Width, Tubular Side Rail, 1-1/2 in Side Rail Height, 149/95/66 ft-lb Capacity, 9 in Rung Spacing, Ceiling Mounting, 1008 Steel, Telco Gray, Powder Coated

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_SB2101ABZ_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_SB2101ABZ_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_SB1712TG_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_SB1712TG_Specification_Sheet.pdf

• Ladder type cable runway for communication cabling pathways
• Mounts to ceilings, walls, floors, relay racks and electronic enclosures
• 1/2 x 1 in 11 ga steel channel welded rungs spaced 9 in on center
• All finishes are UL classified as suitable as an equipment grounding conductor (File No. E60548)
• Load will be 149 lb/ft for 4 ft span, 95 lb/ft for 5 ft span, 66 lb/ft for 6 ft span
• 347 lb/ft, 145 lb/ft and 70 lb/ft maximum load at 5/8 in deflection
• 1/2 in x 1 in, 11 ga THK rung size
