The FM1 Series Timer Modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24 hr or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/ VDC,120 or 208/240VAC single-phase general applications.

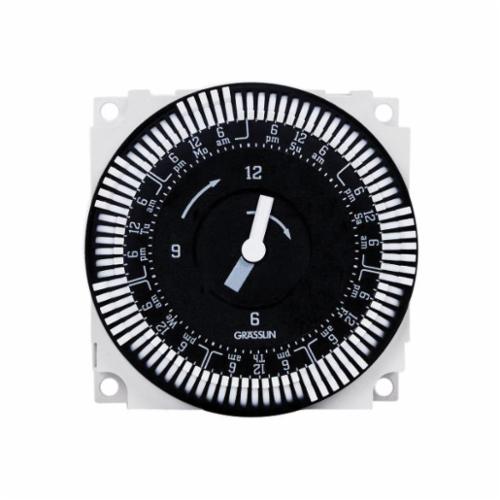

Intermatic® Grasslin® Electromechanical Timer Module, Quartz, Series: FM1, 120 VAC, 21 A, 1 hp, 1 Pole, 1CO 1 Form C SPDT Contact Form, 2 hr to 7 days Time Setting, 7 days Pulse, 1/4 in Quick-Connect Electrical Connections, -4 to 131 deg F, Panel Mounting, 2.36 in H x 2.36 in W x 1.25 in D

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e8b079eb896aad6ae7971d426f4fd5af160bbd766c1b09ed7cdc87e3ab13c4ce.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e8b079eb896aad6ae7971d426f4fd5af160bbd766c1b09ed7cdc87e3ab13c4ce.pdf

• Captive trippers with 15 min intervals on 24 hr models and 2 hr intervals on 7 day models
• 7 day carryover battery backup on Q models
• Noise immune - ideal for robust applications
• Synchronous drive or quartz drive Q models with self recharging battery backup
• True clock face, easy-to-set
• Compact size
• Clear plastic cover (DC-FME-A), sold separately below
• 1/4 in quick-connect terminals
• Quartz drive with battery backup
• 1350 W power
• 1 hp at 120 VAC, 2 hp at 240 VAC motor power
• Without override
• 2 hr minimum ON/OFF time
• Noise immune quartz drive with battery backup, true clock face easy-to-set compact size, 7 day carryover
• 1 hp at 120 VAC, 2 hp at 250 VAC motor power
