All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.

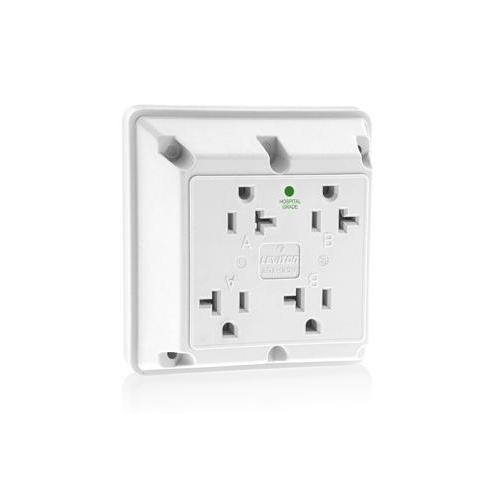

Leviton®, 21254-HW, Straight Blade Receptacle, 1-Phase 4-in-1 Extra Heavy Duty Grounding, 250 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Screw Terminal, Nylon, White, 4.5 in L x 4.5 in W x 1.15 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5842-I_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5842-I_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5280-GY_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5280-GY_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/embed/Po-KAIXLfWc

• Terminal wiring screws fit inside a standard 1-gang wall box, adapter plate not required
• Impact resistant nylon cover and base for strength and resistance to chemicals and corrosives
• Easy-to-read voltage and amperage rating molded onto smooth face
• Extra heavy-duty, T-type triple wipe bronze contacts for maximum performance
• Ground holes configured up or down to be outside the device, accommodating up to 4 fed spec size straight or angle plugs
• #8 terminal screws accept up to no 12 AWG solid or stranded copper wire
• Termination anchor holes for easy conductor wiring
• Exclusive shield wall design protects ground connection from contact with live circuit conductors
• A and B molded on face and back for easy identification of receptacle pairs for split circuit conversion
• Convenient built-in strip gauge
• No 8 terminal screws accept up to no 12 solid or stranded copper wire
