B-Line B297-18ZN

Share Print

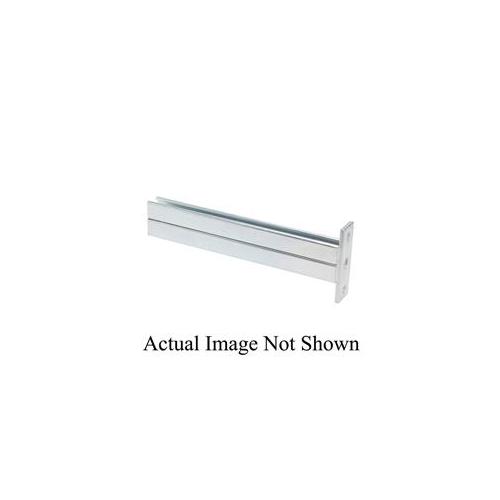

B-Line B297-18ZN Cantilever Double Channel Bracket, 2 Holes, 18 in L x 2 in W x 3/8 in THK, Steel

  • MPN: B297-18ZN

  • IESPN: 42380

  • UPC: 781011529338

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
B-Line B297-18ZN

B-Line series strut fitting complete the full line of our strut system and include many time and material saving solutions. These accessories are available in a variety of materials, finishes and configurations to work with B-Line series strut channel

B-Line Double Channel Bracket, Cantilever, Series: B297, 1100 lb Load, 2 Holes, 18 in Length, 2 in Width, 6-1/4 in Depth, 3/8 in Thickness, 9/16 in Dia Hole, 4-5/8 in Hole Spacing, Vertical (Zero-U) Mounting, For Use With: B22A Series Channel, Steel, Electro-Plated Zinc

Type      Cantilever
Series      B297
Load Capacity      1100 lb
Number of Holes      2
Length      18 in
Width      2 in
Depth      6-1/4 in
Thickness      3/8 in
Hole Size      9/16 in Dia
Hole Spacing      4-5/8 in
Mounting Type      Vertical (Zero-U)
Suitable For Use With      B22A Series Channel
Material      Steel
Finish      Electro-Plated Zinc
  • 2.5 safety factor
