B-Line B570AGRN

Share Print

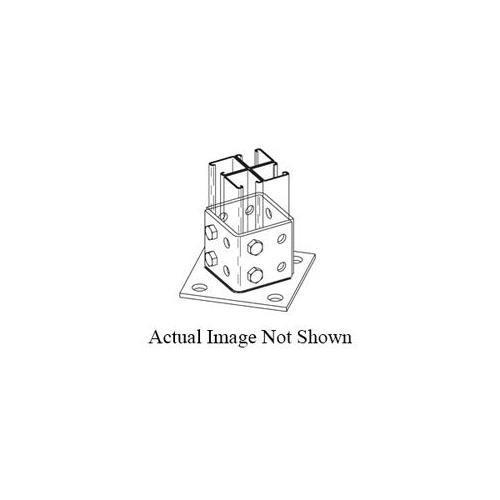

B-Line B570AGRN Square Closed Post Base, 4 Channel, 45 deg Centered Offset Channel Position, 3-1/2 in H Base, For Use With 4 Channel Combination, Steel

  • MPN: B570AGRN

  • IESPN: 51020

  • UPC: 781011558581

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
B-Line B570AGRN

B-Line series strut fitting complete the full line of our strut system and include many time and material saving solutions. These accessories are available in a variety of materials, finishes and configurations to work with B-Line series strut channel

B-Line Post Base, Square Closed, 4 Channels, 45 deg Centered Offset Channel Position, 3-1/2 in Base Height, 16 Channel Mounting Holes, 6 in L x 6 in W x 1/4 in THK Pad, 4 Pad Mounting Holes, For Use With: 4 Channel Combination, Steel, Dura Green™

Type      Square Closed
Number of Channels      4
Channel Position      45 deg Centered Offset
Base Height      3-1/2 in
Channel Mounting Holes      16
Pad Dimensions      6 in L x 6 in W x 1/4 in THK
Pad Mounting Holes      4
Suitable For Use With      4 Channel Combination
Material      Steel
Finish      Dura Green™
