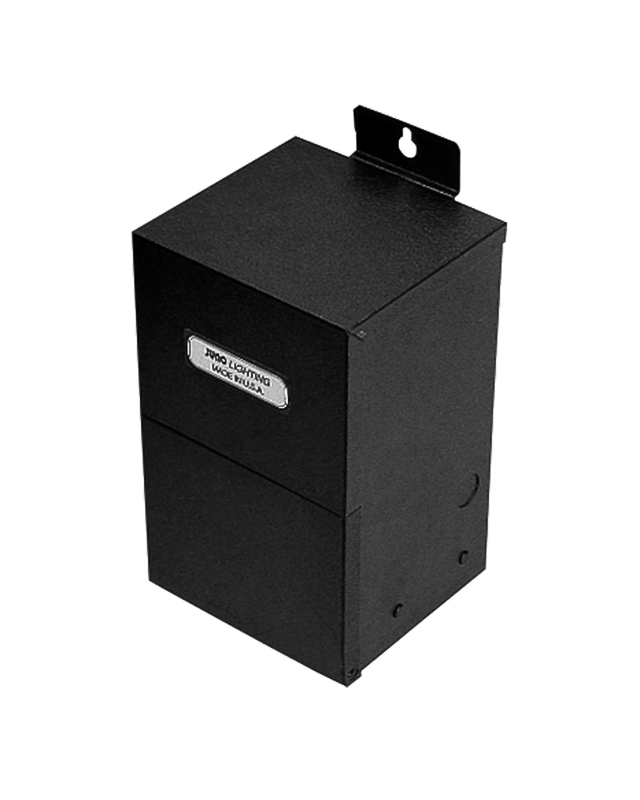

Juno® TF5150 Series, 12 VAC 150 VA remote magnetic transformers feature one 150 VA output rated for 50 to 150 W halogen loads or 75 to 150 W LED loads. They are designed for 120/277 VAC operation and are compatible with all Flex 12™ and Trac 12™ low voltage luminaires including halogen and LED.

Juno® Flex 12™ Magnetic Transformer, Low Voltage, Series: T538, 120 VAC Input, 12 VAC Output Electrical Rating, >20 kHz Frequency, Power Factor: >0.95, 140 deg F, High Impact Polycarbonate, White, Black, 10-3/4 in L x 4-3/8 in W x 4-1/8 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_TF5150BL_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_TF5150BL_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_TF5150BL_Installation_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_TF5150BL_Installation_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_TF5150BL_Data_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_TF5150BL_Data_Sheet.pdf

• Single 120 or 277 VAC input, one 12 VAC output rated for 50 to 150 W halogen loads or 75 to 150 W LED loads
• Resettable magnetic circuit breaker provides faster short circuit protection than standard thermal circuit breakers
• Provides overload protection unaffected by ambient operating conditions
• Eliminates false overload failures due to elevated ambient temperatures which can occur with thermal circuit breakers
• Dimmable using dimmers qualified by Juno Lighting Group
• Remote transformer can be mounted in any position in accessible, well ventilated areas such as basements, attics, plenums and electrical closets
• Front access wiring compartment and terminal wiring block connections for easy installation
• Primary and secondary circuits physically and electronically isolated, potted core and coil construction, 13 V boost tap, thermally protected primary
• Remote mount magnetic transformers are compatible with all Flex 12™ and Trac 12™ low voltage luminaires
• 12 VAC 150 VA remote magnetic transformer, rated for 50 to 150 W for incandescent loads, 75 to 150 W for LED loads, 120 VAC input
• Similar to TL554N but with terminal block wiring connections to facilitate installation
• 150 W wattage
