EATON B-Line series enclosure solutions are designed to meet our customer requirements. From standard stock product to modified enclosures, our enclosure experts are available to help you choose the enclosures you want, in the time you need them.

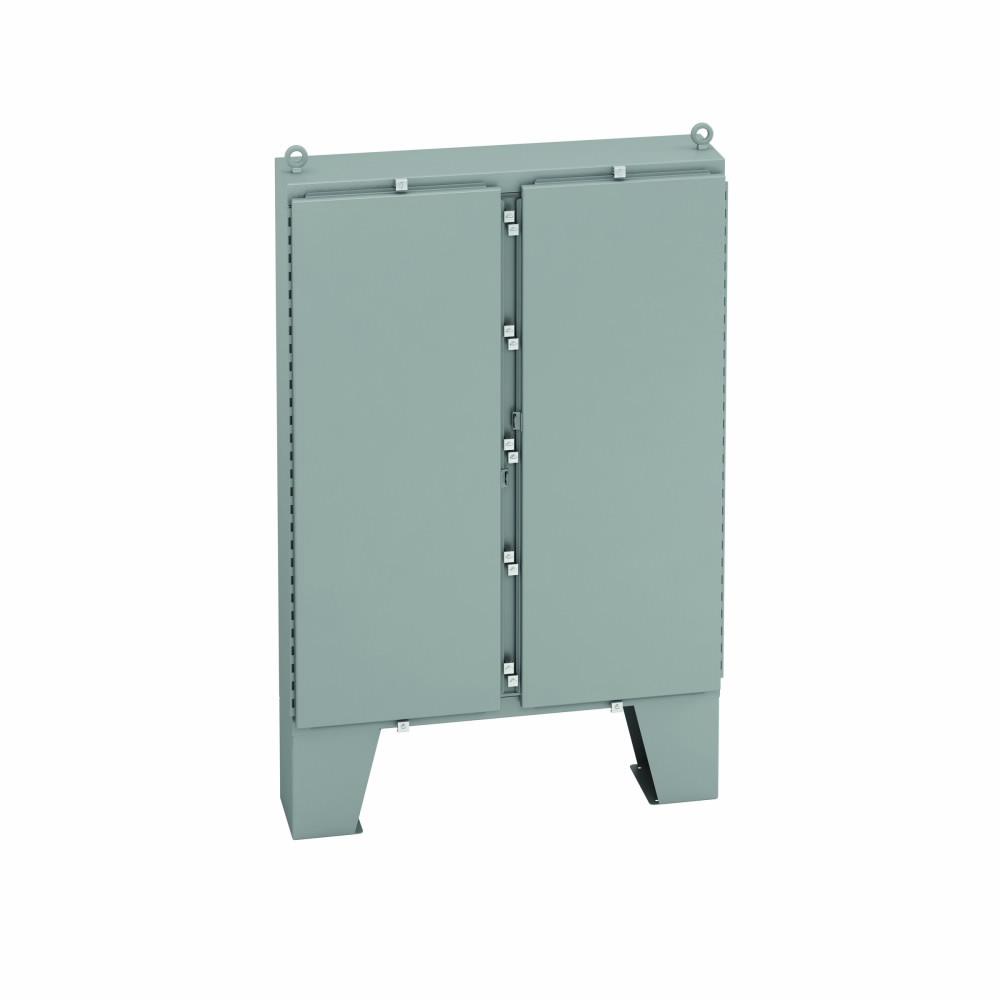

B-Line Ground Mount Enclosure, 2-Door, 60 in Width, 12 in D, 62 in Height, NEMA 4/IP66, Hinged Cover, 55.87 in W x 55.87 in H Panel, Lock: Padlock Hasp, Floor/Leg Mount, Carbon steel, Polyester Powder Coated, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf

• Enclosure and door are fabricated from 12 ga steel
• All continuous welded seams are finished smooth
• Doors are secured to the body with removable concealed hinges and easy to remove stainless steel door clamps on three sides
• Modern bevel profile on hinge side of enclosure door
• Print pocket is provided
• Each door has a padlock hasp with sealing hole provision
• Door have a seamless poured in place gasket
• Ground stud provided on door and body
• Removable center post for complete front access
• Large lifting eyebolts are supplied
• Mounting legs are provided for floor mounting
• Wash and phosphate undercoat
• ANSI 61 gray polyester powder finish
• Stainless door clamps
