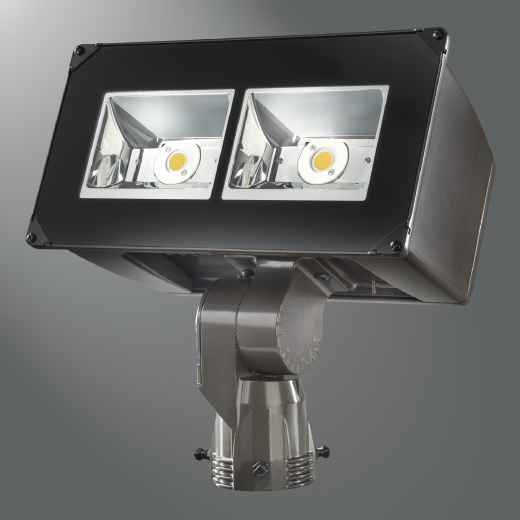

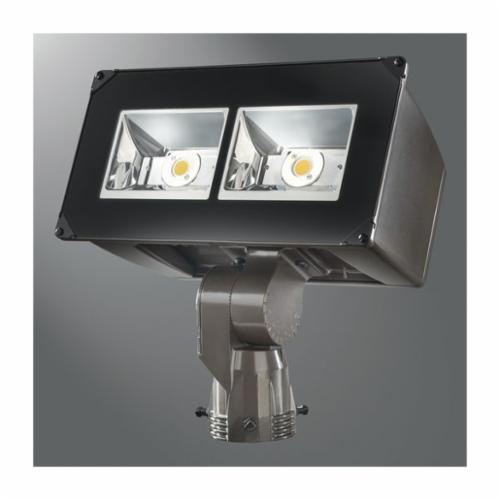

The Night Falcon LED floodlight luminaire combines high-efficiency optics, superior thermal management and energy efficiency in a cost effective solution. The compact, robust design incorporates a separate driver compartment for maximum heat dissipation to insure longevity of both the fixture and the LEDs. The Night Falcon luminaire uses precision engineered optics delivering superior uniformity and excellent illumination to the targeted application. Typical applications include area lighting for security, building facade lighting, accent and signage lighting in both commercial and industrial applications. The Night Falcon luminaire is UL/cUL listed for wet locations and is IP66 rated.

Lumark Flood Light Fixture, Series: NFFLD, 120 to 277 VAC, 85 W Fixture, 1.105/0.725/0.631/0.556 A, LED Lamp, Knuckle Lamp Base, 50000 hr Average Life, 4000 K Color, 70 CRI, Clear Glass Shade, Tempered Glass Lens, 9432 Lumens, IP66, Slipfitter Mount, Die Cast Aluminum Housing, Carbon Bronze Housing, 22-3/4 in L x 18-1/4 in W x 9-1/2 in H

• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515127768525.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Lumark_NFFLD_A25_S_Brochure.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-BRO-v1-lumark-night-falcon-brochure-bro.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515128388323.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Lumark_NFFLD_A25_S_Installation Instructions.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-INS-v1-IB512002EN-integrated-sensor-supplementary-ins.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1512014778786.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1537665331796.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Lumark_NFFLD_A25_S_Specification Sheet.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/11143/ID-SPE-v1-lumark-nffld-night-falcon-led-td506007en-sss.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11143/ID-SPE-v1-lumark-night-falcon-td506007en-sss.pdf
• Specification Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Lumark_NFFLD_A25_S_Specification Sheet_1.pdf
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873502812.pdf
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/http://www.ideadigitalcontent.com/files/11143/StockGuide_Warranty_Page.pdf

• Heavy duty, die-cast aluminum housing, driver compartment and driver housing door
• A separate driver compartment and external fins provide optimal thermal management that result in longer LED and driver life
• The LED chamber incorporates a vacuum metalized reflector that provides high efficiency illumination
• LED driver is mounted to the removable die-cast aluminum door for optimal heat sinking and ease of maintenance
• One piece silicone gasket seals the door to the fixture
• 3G vibration rated per ANSI C136.31
