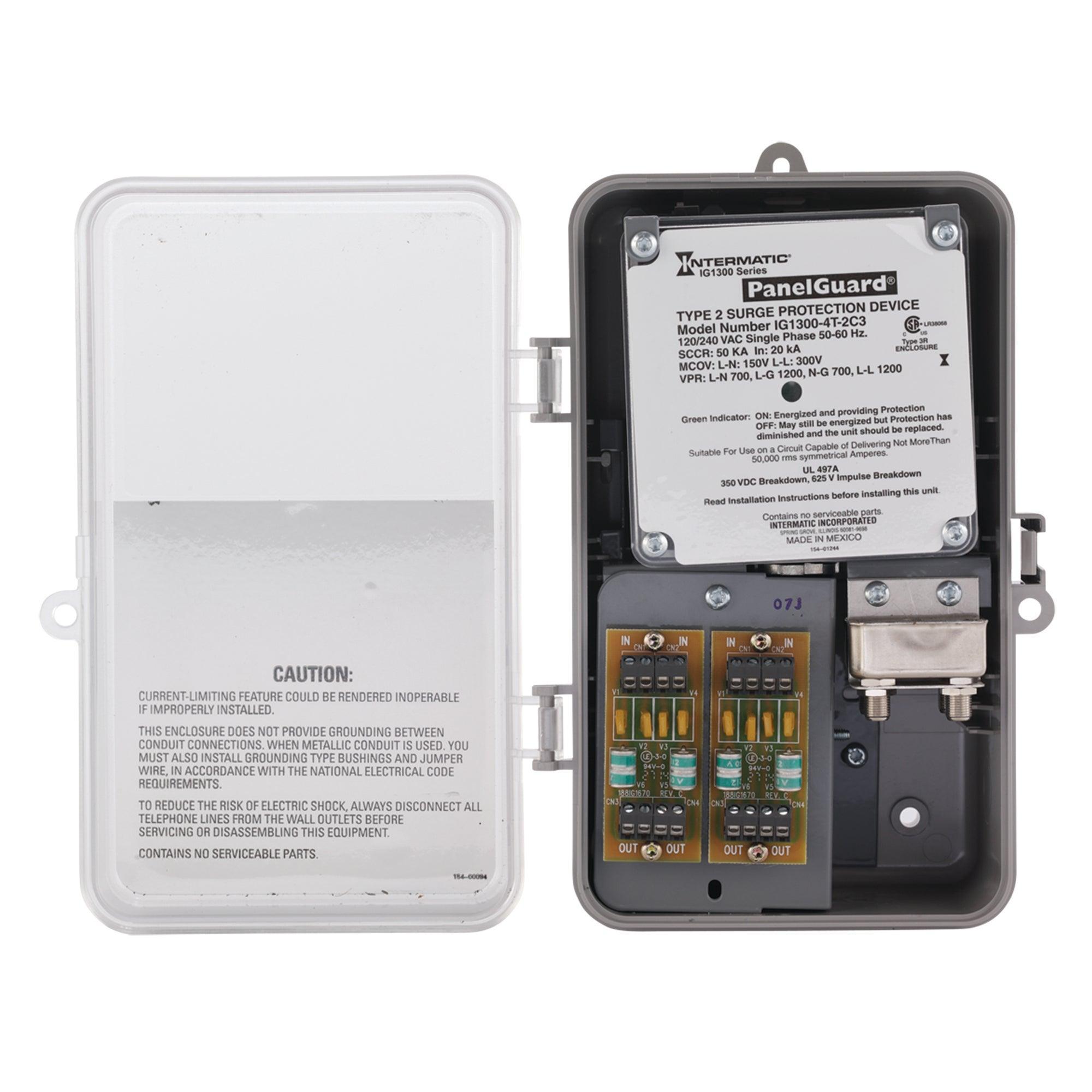

The IG1300 Series provides protection for telephone and coax lines in addition to AC Power. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. The IG1300 Series Surge Protective Devices are designed for Type 2 applications for installations after service entrances. CSA certified to ANSI/UL 1449, 3rd Edition, UL 497A for phone line and UL 497B for coax cable.

Intermatic® Surge Protective Device, Series: IG1300, 120/240 VAC Electrical Rating, 50/60 Hz Frequency, 50 kA Short Circuit, 20 kA Nominal Discharge, Modes of Protection: L1-N/L2-N/L1-G/L2-G/N-G/L1-L2, Green LED Indicator, 2 ph, Environmental Conditions: -35 to 85 deg C Operating Temperature, NEMA 1/2/3R Enclosure, Surface Mounting, Polycarbonate, 9.38 in H x 5.25 in W x 4 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_IG3240RC3_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_IG3240RC3_Specification_Sheet.pdf

• TPMOV surge protection technology for AC SPD
• Type 3R plastic rainproof enclosure for indoor/outdoor installations
