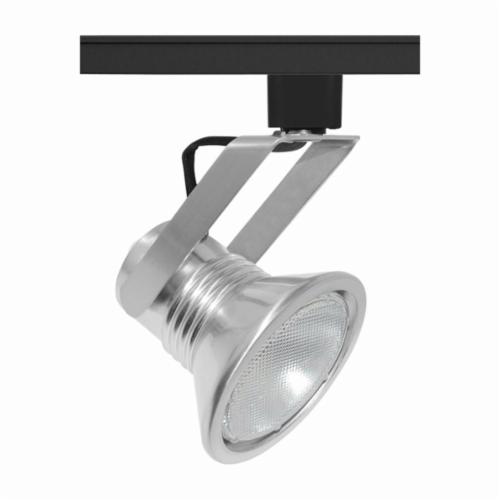

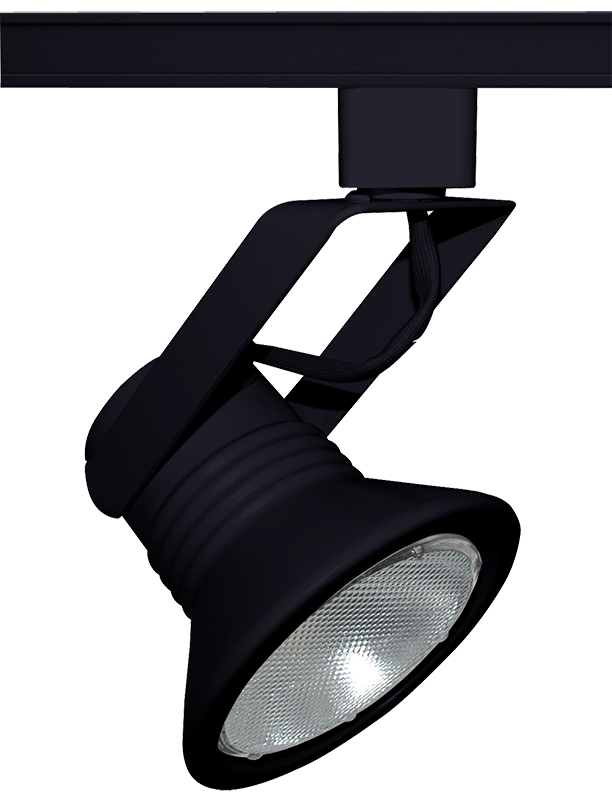

The Juno® Trac-Master™ T228 series flyback fixture is distinguished by a sharp angular form. They slant back at a 45 deg angle for the trac, providing various illumination spreads. This unique design lends visual energy to any space.

Juno® Track Head, Line Voltage, Series: T228, PAR30 Incandescent Lamp, 75 W Fixture, 120 VAC, 50 W Lamp, 1-3/4 in Maximum Extension, Medium Lamp Base, 1 Lamp, Fly Back Head, 4-3/4 in Diameter, 6-5/8 in Width, 4-3/4 in Length, Ceiling Mounting, Steel Housing Material, Satin Chrome Housing Finish

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520592927056.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520592927056.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7b7bda3ebd3bdc1557ee801d5791135a82f59e9eb14061eb58a1a8ecdd1f60b9.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7b7bda3ebd3bdc1557ee801d5791135a82f59e9eb14061eb58a1a8ecdd1f60b9.pdf

• 90 deg C vertical aiming capability and 358 deg C rotation
• Medium base, porcelain lamp holder with nickel plated copper screw shell
• Trac adapter features copper alloy contacts that provide precise spring action
• No arcing and will not take a set
• True, positive electrical ground
• Spring loaded locking latch with embossed polarity arrows secures trac light to trac
• Pull-up contact to up position for 2-circuit application
• Polarity indicator embossed on bottom of adapter
• Housing constructed of die formed steel
• Medium base porcelain with nickel plated copper screw shell
• For use with 35 to 75 W PAR30 lamps
