All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.

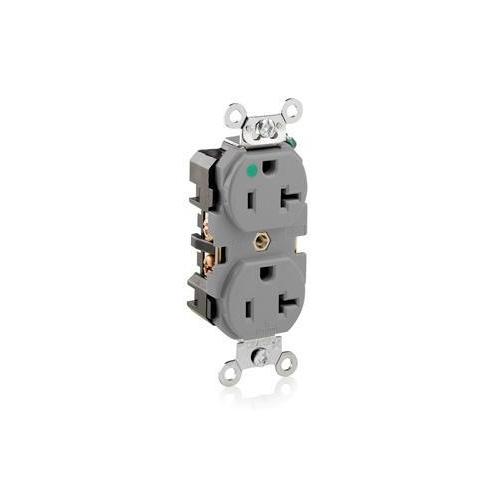

Leviton®, 8300-GY, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Gray, 46 in H x 1.53 in W x 1.11 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_8300-T_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_8300-T_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5015-T_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5015-T_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_8300-GY_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_8300-GY_RoHS.pdf

• Impact resistant thermoplastic nylon cover and body
• Four corner latches securely fasten face
• Extra heavy duty triple-wipe, brass T contacts for superior contact and conductivity
• High performance brass #10-32 terminal screws to reduce conductor oxidation
• Back and side wire ground termination brass strap version
• Back and side wiring options
• Break-OFF tabs allow easy 2-circuit conversion
• Apron barrier to prevent accidental contact between terminal screw heads and metal box
• Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
• Power Indication™ provides permanent green dot lens with 100000 hr LED status indicator
• Smooth face does not collect dirt
