Leviton surge protection devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton® surge protection devices are compliant with UL 1449 Standards. Leviton outstanding surge protection devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

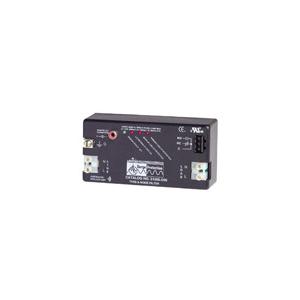

Leviton® Surge Protective Device, Type 4 In-Line, Series: 51000, 10 A at 120 VAC Electrical Rating, 50/60 Hz Frequency, 2 Pole, 3 Wires, 5 kA Short Circuit, 672 J Energy, 39 kA Peak Surge Current, Modes of Protection: L-N/L-G, Audible Alarm/Light Indicator, 1 ph, Environmental Conditions: -10 to 60 deg C Operating, -20 to 85 deg C Storage, 5 to 95% Non-Condensing Humidity, UL94 V-2 Flammability, NEMA 1 Enclosure, DIN Rail Mounting, Polycarbonate, 5.1 in H x 3.35 in W x 2.13 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_97b58a9ad322aae2b4d25b030708ccd88880ca6acc113042168afacc424cf8a2.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_97b58a9ad322aae2b4d25b030708ccd88880ca6acc113042168afacc424cf8a2.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f47419850f437a8d9e78f06e1733c1fb144157bf39c66e6063e2989f8a3e6c71.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f47419850f437a8d9e78f06e1733c1fb144157bf39c66e6063e2989f8a3e6c71.pdf

• Hardwired connection
• Protection for up to 52000 A of surge current per mode
• C Sinewave Tracking provides enhanced EMI/RFI filtering
• Visual and audible alarms if surge protection is lost
• Dry contacts for remote monitoring
• MOV surge technology
• Wired-in module
• 3 mode of protection
• Type 4
