Featuring a designer look and feel that qualify them as modern classics, Decora® rocker switches add so much at a modest cost that no fine home should be without them. Their sleek simplicity and smooth, quiet operation stem from quality materials fitted to tight tolerances and finished with great care, ensuring years of trouble free service. Easy to wire, they work with tungsten, fluorescent and resistive loads. Their sturdy construction and dependable performance are everything youd expect from the preeminent switch maker.

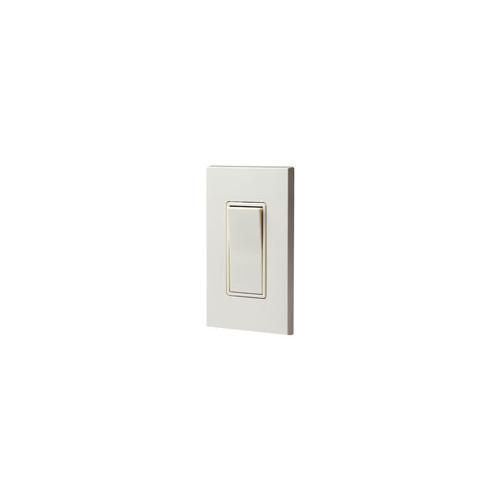

Leviton®, 5613-2W, Quiet Switch, 3-Way Grounding Lighted Handle Illuminated, 120/277 VAC, 15 A, 1/2 hp, 2 hp Power, 15 A at 120/277 VAC Contact, Quiet Action, Rocker Actuator, Surface Mounting, Quick-Wire®/Side Wire Terminal, Thermoplastic, White, Environmental Conditions: -40 to 120 deg C Operating Temperature, 4.2 in H x 1.4 in W x 0.99 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Decora_5601_2_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Decora_5601_2_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Decora_5613_2T_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Decora_5613_2T_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ed777a7d60f5671018d9af8a57f4524fd9638d3333d96d5d667d1804e1eaff22.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ed777a7d60f5671018d9af8a57f4524fd9638d3333d96d5d667d1804e1eaff22.pdf

• Illuminated switch rocker illuminates when load is OFF
• Switch border shields against dust and fits in wallplate to prevent rocker binding
• Side wiring terminals accept both solid and stranded wire for easy installation
• Full rated current capacity with tungsten, fluorescent or resistive loads
• Motor capacity is 80% of switch rating
• Conforms to NEMA and ANSI standards
• Pilot light switch rocker visible when load is ON, even in bright light
• Illuminated switch does not require a neutral
• Pilot light switch requires a neutral
• 1/2 hp at 120 VAC, 2 hp at 277 VAC power rating
• Illuminated when load is Off
• Conform to all NEMA standard specifications
• Grounding, switch frame shields against dust and fits in wallplate to prevent rocker binding
• Terminal screws accept up to 12 AWG copper or copper clad wire
• Quickwire® push-in terminals accept 14 AWG solid copper wire only
• Sturdy construction for long service life
• Steel strap
