Trac-Master® TU-Series low-profile, 2-circuit trac sections can be surface or pendant mounted. They provide 2 separate 20-amp circuits from a single electrical feed or one 20-amp circuit controlled by 2 switches. The trac features an I-beam cross section that provides added strength and rigidity in suspended pendant applications and is compatible with a full range of feed, connector, and mounting accessories to satisfy virtually any requirement. Trac sections are available in 4, 8, and 12-foot lengths and accept all Trac-Master lamp holders. They are offered in white, black, or silver.

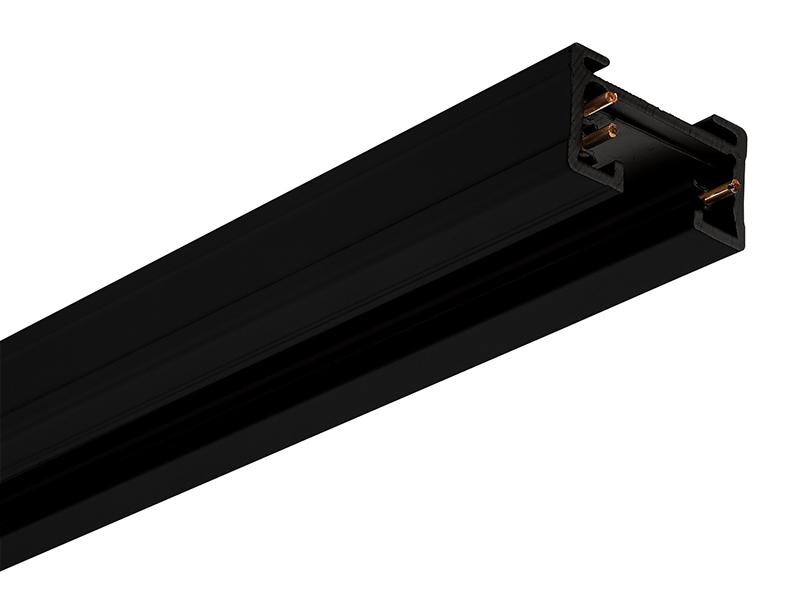

Juno® Trac-Master® Trac System, 2-Circuit, Series: TU Series, 8 ft Length, 1-3/8 in Width, 13/16 in Depth, For Use With: Trac-Master® and Trac-Lites Trac Fixtures, Extruded Aluminum, Black, 91-7/8 in L

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_T_6FT_SL_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_T_6FT_SL_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_TU34_WH_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Juno_TU34_WH_Specification_Sheet.pdf

• 2-circuit capability offers the flexibility of individual circuit control for combining dual lighting effects along a single trac
• Two 20 A circuits provide maximum switching flexibility in long trac runs, the increased capacity eliminates 50-percent of the feed points
• Extruded aluminium I-beam channel construction
• Injection molded polycarbonate dead-end with set screw
• One-piece thermoplastic insulator ensures consistent conductor spacing for reliable electrical contact
• Insulating bushings supplied at mounting hole locations to prevent shorts to ground
• Debossed polarity line provides visual cue to proper trac, trac connector, and fixture alignment
• Integral raceway in top of channel accommodates pendant mounting hardware and wire routing to electrical feed
• Three 12 gauge solid copper conductors
• Rated 20 A at 120 VAC
• Connectors and feeds simply push into trac sections
• Standard lengths may be cut to length by installer
• Supplied with toggle bolts for surface mounting
