The EVE series is a compact architectural LED exit sign designed for fast installation and reliable service. The EVE series has a flame rated, UV stable thermoplastic housing with a lightly textured white or black finish. Available in AC only or emergency operation which includes a nickel metal hydride (NiMH) battery and provides a full 90 min of emergency exit illumination in the event of power failure. Includes a constant current charger. The EVE accepts 120/277 VAC input at 60 Hz and optional 220 to 240 VAC input at 50 or 60 Hz with self-diagnostics option. Available with special worded options.

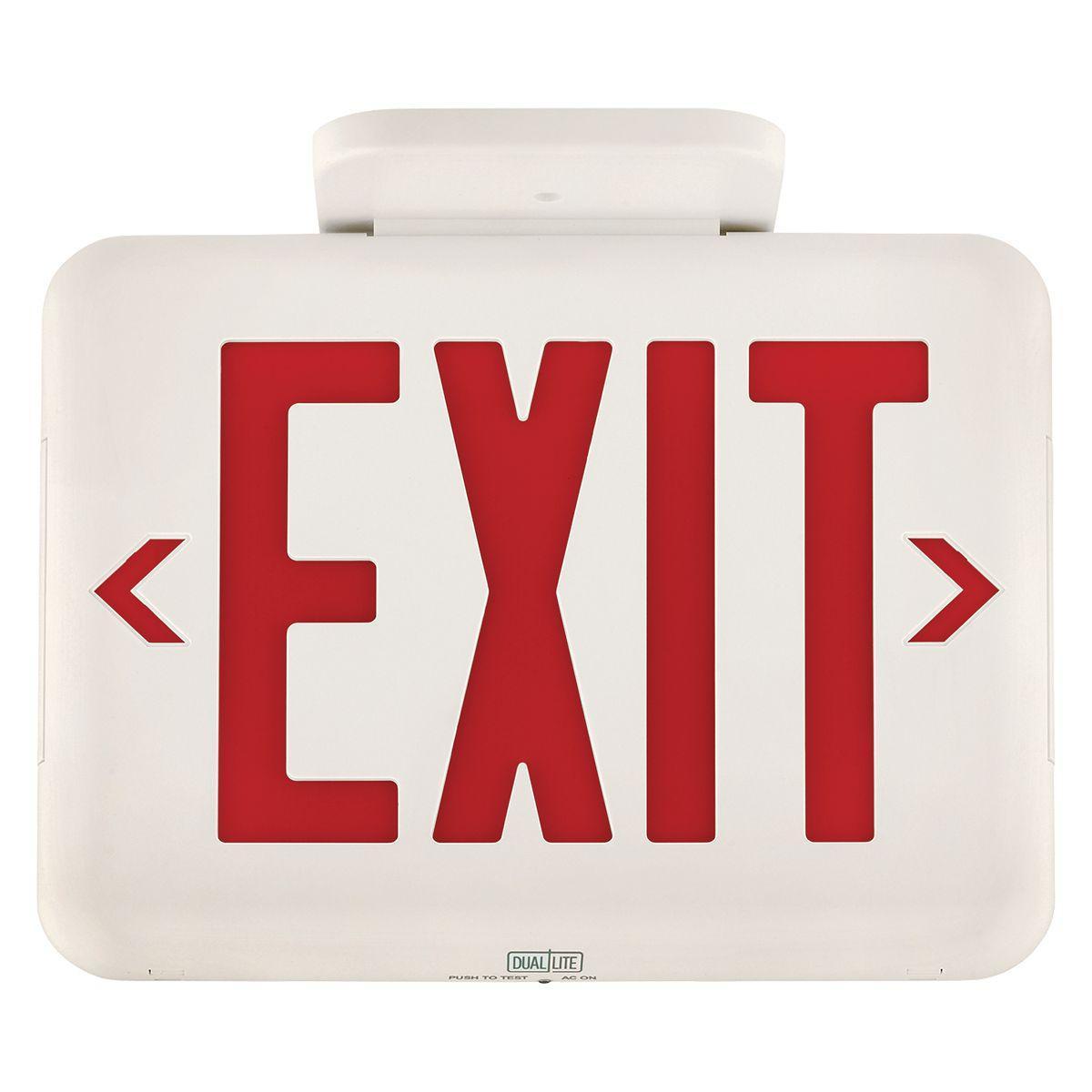

Dual-Lite® Emergency Exit Sign, Illuminated Standard Universal Face, Series: EVE, 120/277 VAC, 0.0127/0.027 A, Legend: EXIT, LED Lamp, 2.01 W Lamp, White Light, NiMH Battery Power Source, Thermoplastic Housing Material, White Housing Finish, 11.5 in L x 5.25 in W x 9.63 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual-Lite_EVEUGW-DC_ELSS_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual-Lite_EVEUGW-DC_ELSS_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual-Lite_EVEUGW-DC_ELSS_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual-Lite_EVEUGW-DC_ELSS_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual-Lite_EV4RI_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual-Lite_EV4RI_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual-Lite_EVEUGW-DC_ELSS_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual-Lite_EVEUGW-DC_ELSS_Specification_Sheet.pdf

• High impact, flame rated and UV stable white thermoplastic housing, SW- Available with Special Wording
• FAP- Fire Alarm Panel
• AF- Audible Flasher
• DC- Remote DC Operation
• 24K- 220-240VAC Input
• Accessories
• Vandal Resistant Shield
• Wall and Ceiling Mount Wire Guard
